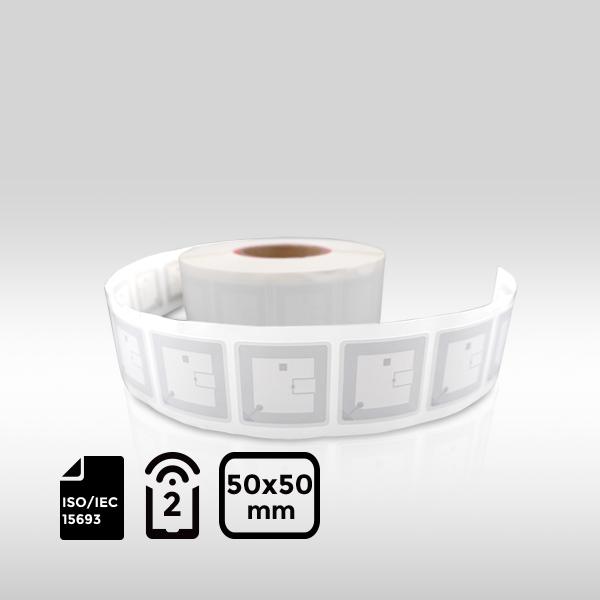

50×50 mm RFID SLIX2 NFC Label:
- High-Performance NFC Label: Designed for reliable reading and versatile applications.
- Chip: Equipped with the RFID SLIX2 chip.
- Standards Compliance: Supports ISO/IEC 15693, ISO/IEC 18000-3, and NFC Forum Type 5 standards.
- Read Range: Up to 1.5 meters.
- User Memory: 2560 bits, supporting multiple data formats (URL, text, encrypted messages).
- Security Features: Flexible access control and anti-counterfeiting functions.
- Applications: Suitable for intelligent packaging, inventory management, product authentication, and interactive marketing.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: RFID SLIX2.
- International Standard: ISO 15693, ISO 18000-3, NFC Forum Tag Type 5.
- User Memory: 2560 bits.
- UID Memory: 64 bits.
- Read Range: Up to 1.5 meters.
Specifications:
Physical Specifications:
- Material: Coated Paper.
- Label Size: 50×50 mm.
- Antenna Size: 45×45 mm.
Technical Parameters:
- Operating Frequency: HF 13.56 MHz.
- Communication Protocol: ISO 15693, ISO 18000-3, NFC Forum Tag Type 5.
- Read Range: Up to 1.5 meters (depending on antenna geometry).
- Capacitance: 23.5 pF.
- Operating Mode: Passive.
RF Specifications:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: RFID SLIX2.
- Data Retention: 50 years.
- User Memory: 2560 bits.
- UID Memory: 64 bits.
- Write Endurance: 100,000 cycles.
- Reading Rate: 53 Kbit/s.
- Data Integrity: 16-bit CRC.
- Lock Mechanism: EAS, AFI, DSFID.
- Anti-Collision Function: Yes.
- Password Protection: 32-bit protected EAS and AFI functionality.
- Originality Signature: 32 bytes.
Additional Information:
Operating Environment:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective and should not be used.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 210 mm.
- Core ID: 3 inches (76.2 ± 0.50 mm).
- Packing Quantity: 2000 pcs/roll (1.475 kg/roll).
RFID Card (RFID SLIX):
- Size: 86×54×0.88 mm.
- Description: Blank or custom-printed RFID card.
- Compatibility: Supports ISO/IEC 15693 and NFC Forum Tag Type 5.
RFID SLIX Family:
- RFID SLIX:
- User Memory: 896 bits.
- EEPROM: 1024 bits (32 blocks of 4 bytes each).
- Does Not Support: EAS selection and memory protection.
- RFID SLIX 2:
- User Memory: 2528 bits.
- EEPROM: 2560 bits (80 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-L:
- User Memory: 256 bits.
- EEPROM: 512 bits (16 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-S:
- User Memory: 1280 bits.
- EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
- Efficiency & Reliability: Global shipping with in-stock items delivered in North America, Europe, and the Asia Pacific.
RFID Readers to Match:
- Frequency Band: HF 13.56 MHz.
- Chip Type: RFID SLIX2.
- International Standard: ISO 15693, ISO 18000-3, NFC Forum Tag Type 5.
- User Memory: 2560 bits.
- UID Memory: 64 bits.
- Read Range: Up to 1.5 meters.
