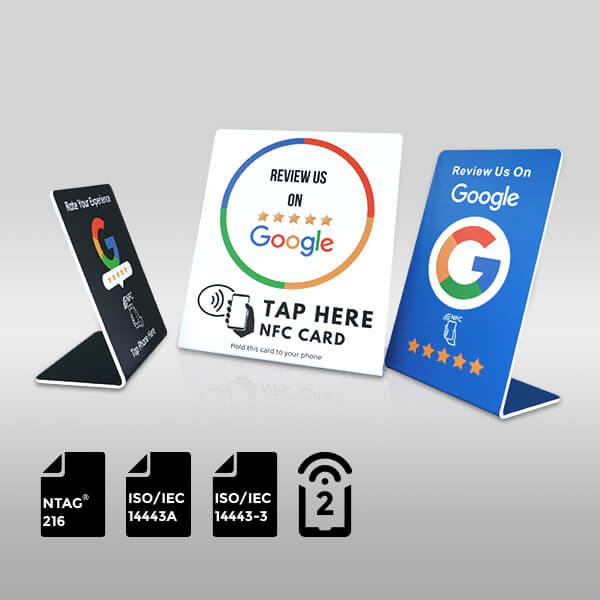

NFC TAG 216 NFC Review Stand:
- Technology and Design: Seamlessly blends technology and design to enhance brand image and customer experience.
- User Interaction: With the NFC TAG 216 NFC chip, users can easily access digital content by tapping their NFC-enabled mobile phones.
- Durability: Made from exceptionally durable PVC material.
- Application: Ideal for encouraging customer reviews on NFC platforms, such as restaurants, convenience stores, beauty salons, gyms, and more.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG 216.
- International Standard: ISO/IEC 14443A, ISO/IEC 14443-3, NFC Forum Type 2.
- EEPROM Memory: 924 bytes.
- User Read/Write Area: 888 bytes.
- Operating Temperature: -10°C to 60°C.
Specifications:
Physical Specifications:
- Material: PVC.
- Model Numbers: GRS120140 | GRS76128 | GRS85100.
- Full Size: 120×190 mm | 76×177.5 mm | 85×145 mm.
- Panel Size: 120×140 mm | 76×127.5 mm | 85×100 mm.
- Thickness: 1.8 mm.
- Antenna Size: Diameter: 60 mm.
- Antenna Material: Copper coil.
- Weight: 6.5 kg/100 pcs | 4 kg/100 pcs | 3.5 kg/100 pcs.
- Shape: Round | Square.
- Printing Methods: 4-color printing.
Additional Information:
- Operating Environment: -10°C to 60°C.
- Application: Restaurants, beauty salons, gyms, convenience stores, and Contact Customer Service places for Google user reviews.
Technical Parameters:
- Operating Frequency: 13.56 MHz.
- Communication Protocol: ISO/IEC 14443A, ISO/IEC 14443-3, NFC Forum Type 2.
- Communication Rate: 106 kbit/s.
- Operating Distance: Up to 100 mm.
- Input Capacitance: 50 pF.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service Semiconductors.
- Chip Family: NFC TAG 216.
- EEPROM: 924 bytes.
- Unique Serial Number: 7-byte UID.
- Initialized Capability Container: 4 bytes.
- User Read/Write Area: 888 bytes.
- Memory Access Protection: 32-bit password.
- Originality Signature: ECC-based.
- Write Endurance: 100,000 cycles.
- Data Retention: 10 years.
- Memory Organization: 924 bytes organized in 231 pages with 4 bytes per page.
- Anti-collision: Supported.
