Key Features and Specifications of NFC TAG 216 RFID Tags
RFID Technical Specifications
- Frequency Band: HF 13.56 MHz, the standard frequency for high-frequency RFID and NFC applications.
- Chip Type: NFC TAG 216, offering robust performance and security features.
- International Standards: Compliant with ISO/IEC 14443A, ISO/IEC 14443-3, and NFC Forum Type 2.
- EEPROM Memory: 924 bytes, providing ample space for data storage.
- User Read/Write Area: 888 bytes, offering extensive user-configurable memory.
- Communication Rate: 106 kbit/s, supporting fast data transfer.
- Operating Distance: Up to 100 mm, ensuring reliable reading distances.
- Input Capacitance: 50 pF.

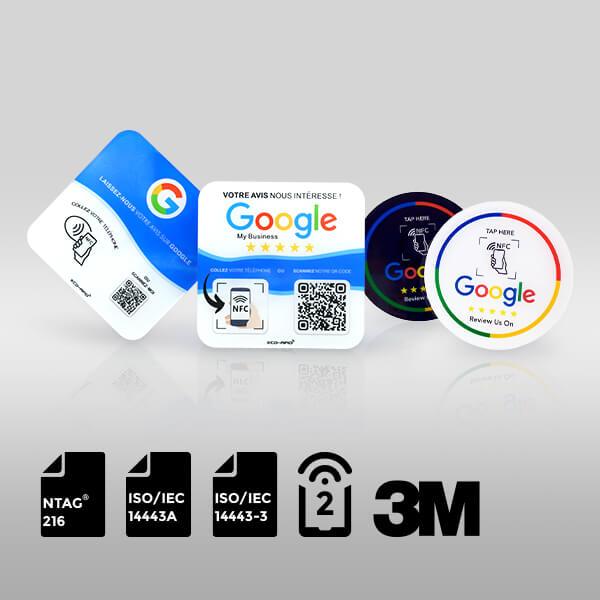

Physical Specifications
- Material: Acrylic + 3M adhesive, ensuring durability and strong adhesion.
- Models:
- GRSD100: Diameter 100 mm
- GRSD120120: Size 120×120 mm
- Thickness: 3 mm.
- Antenna Size: Diameter 40 mm.
- Antenna Material: Aluminum etched antenna.
- Weight: 3.5 kg/100 pcs (GRSD100), 5 kg/100 pcs (GRSD120120).
- Shape: Available in Round and Square options.
- Printing Methods: 4-color printing.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service Semiconductors.
- Chip Family: NFC TAG 216.
- EEPROM: 924 bytes.
- Unique Serial Number: 7-byte UID.
- Initialized Capability Container: 4 bytes.
- User Read/Write Area: 888 bytes.
- Memory Access Protection: 32-bit password.
- Originality Signature: ECC-based.
- Write Endurance: 100,000 cycles.
- Data Retention: 10 years.
- Memory Organization: 924 bytes organized in 231 pages with 4 bytes per page.
- Anti-collision: Supported, allowing multiple tags to be read simultaneously.
Additional Information
- Operating Environment: -40°C to 80°C.
- Applications: Suitable for restaurants, beauty salons, gyms, convenience stores, and Contact Customer Service places for Google user reviews.
Technical Parameters
- Operating Frequency: 13.56 MHz.
- Communication Protocol: ISO/IEC 14443A, ISO/IEC 14443-3, NFC Forum Type 2.
- Communication Rate: 106 kbit/s.
- Operating Distance: Up to 100 mm.
- Input Capacitance: 50 pF.
