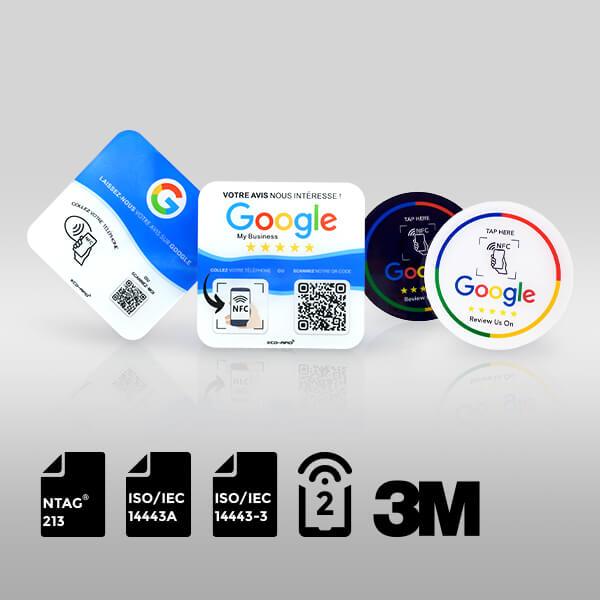

Acrylic Table Sticker with NFC TAG 213 Chip:
- 3M Adhesive: Easily attachable to desktop surfaces.
- Lightweight and Durable: Made from acrylic material, waterproof, and easy to clean.
- NFC User Reviews: Specifically designed for NFC user reviews in restaurants, beauty salons, gyms, convenience stores, and Contact Customer Service places.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG 213.
- International Standard: ISO/IEC 14443A, ISO/IEC 14443-3, NFC Forum Type 2.
- EEPROM Memory: 180 bytes.
- User Read/Write Area: 144 bytes.
- Operating Temperature: -40°C to 80°C.
Specifications:
Physical Specifications:
- Material: Acrylic + 3M adhesive.
- Size:
- Diameter: 100 mm.
- Dimensions: 120×120 mm.
- Thickness: 3 mm.
- Antenna Size: Diameter: 40 mm.
- Antenna Material: Aluminum etched antenna.
- Weight: 3.5 kg/100 pcs | 5 kg/100 pcs.
- Shape: Round | Square.
- Printing Methods: Single-sided 4-color printing | Single-sided 4-color printing with QR code.
Additional Information:
- Operating Environment: -40°C to +80°C.
- Application: Restaurants, beauty salons, gyms, convenience stores, and Contact Customer Service places for Google user reviews.
Technical Parameters:
- Operating Frequency: 13.56 MHz.
- Communication Protocol: ISO/IEC 14443A, ISO/IEC 14443-3, NFC Forum Type 2.
- Communication Rate: 106 kbit/s.
- Operating Distance: Up to 100 mm.
- Input Capacitance: 50 pF.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service Semiconductors.
- Chip Family: NFC TAG 213.
- EEPROM: 180 bytes.
- Unique Serial Number: 7-byte UID.
- Initialized Capability Container: 4 bytes.
- User Read/Write Area: 144 bytes.
- Memory Access Protection: 32-bit password.
- Originality Signature: ECC-based.
- Write Endurance: 100,000 cycles.
- Data Retention: 10 years.
- Memory Organization: 180 bytes organized in 45 pages with 4 bytes per page.
- Anti-collision: Supported.
