Key Features and Specifications of the NFC TAG 213 RFID Tags
RFID Technical Specifications
- Frequency Band: HF 13.56 MHz, the standard frequency for high-frequency RFID and NFC applications.
- Chip Type: NFC TAG 213, offering robust performance and security features.
- International Standards: Compliant with ISO 14443-A and NFC Type 2.
- UID Type: 7 Bytes, ensuring unique identification for each tag.
- User Memory: 144 Bytes, providing ample space for data storage.
- Operating Distance: Up to 10 cm, ensuring reliable reading distances.
- Data Transfer Rate: 106 Kbit/s, supporting fast data transfer.
- Capacitance: 50 pF.
- Anti-Collision Function: Supported, allowing multiple tags to be read simultaneously.
- ECC-based Originality Signature: Supported, ensuring authenticity and integrity.
- Password Protection: Supported with a limited number of unsuccessful attempts.
- Anti-Tearing for Capability Container (CC) and Lock Bits: Supported, ensuring data integrity.

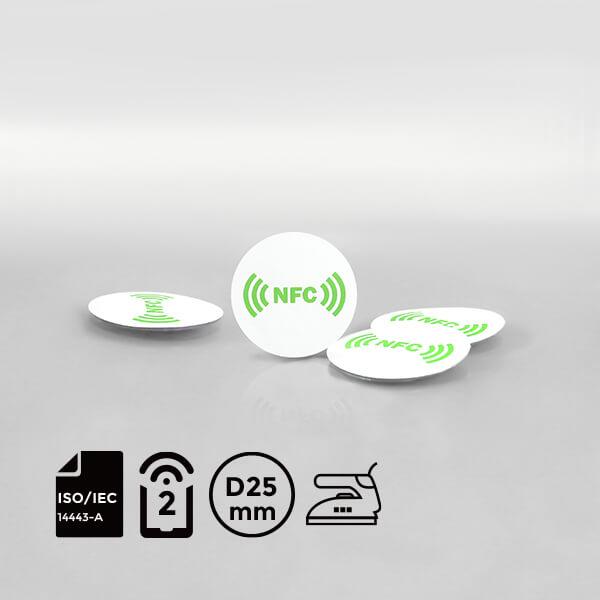

Physical Specifications
- Material: Silicon, ensuring durability and flexibility.
- Dimensions: Diameter 25 mm, thickness 1 mm.
- Weight: 0.35 g.
- Printing: Custom logo printing available.
Technical Parameters
- Operating Frequency: 13.56 MHz.
- Communication Protocol: ISO 14443-A, NFC Type 2.
- Operating Distance: Up to 10 cm.
- Generic Logo: Yes.
Chip Characteristics
- Chip Manufacturer: NFC TAG.
- Chip Type: NFC TAG 213.
- UID Type: 7 Bytes.
- User Memory: 144 Bytes.
- Data Retention: 10 years.
- Write Endurance: 100,000 cycles.
- Data Transfer Rate: 106 Kbit/s.
- Capacitance: 50 pF.
- Anti-Collision Function: Supported.
- ECC-based Originality Signature: Supported.
- Password Protection: Supported with a limited number of unsuccessful attempts.
- Anti-Tearing for Capability Container (CC) and Lock Bits: Supported.
Additional Information
- Operating Limits: Temperature: -40°C to 100°C, Humidity: 20% to 90% RH.
- Storage Limits: Temperature: 18°C to 28°C, Humidity: 40% to 60% RH.
- Wash Limits: 50+ washes and dries.
- Instructions for Heat Pressing: Secure the badge onto the garment and apply heat for 8 to 12 seconds at 155 to 170°C. Subsequently, press heat onto the reverse side of the garment for an additional 10 to 15 seconds under the same temperature conditions.
Packaging
- Packing Format: 70 pcs/sheet.
- Packing Weight: 52.5 g/sheet.
Applications
- Anti-Counterfeiting: Ensuring product authenticity.
- Digital Content: Storing and transferring digital information.
- Brand Promotion: Enhancing brand visibility and customer engagement.
- NFT Garment: Integrating RFID technology with fashion for unique digital experiences.
