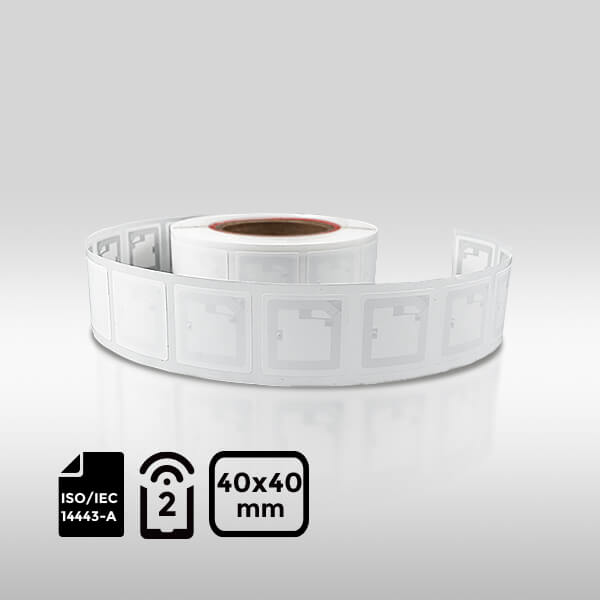

NFC Label RFID TAG 213 40x40mm ISO14443A | NFC type-2

Product Overview

• NFC Label (40x40mm): Designed for enhanced tracking efficiency with a larger antenna for superior reading distance.
• Chip Technology: Powered by the high-performance NFC TAG213 chip.
• Compliance: Fully compliant with ISO/IEC 14443-A and NFC Type 2 standards.
• Ideal Applications: Perfect for logistics, asset management, and smart retail solutions.

Features

• Frequency Band: HF 13.56 MHz
• Chip Type: NFC TAG213
• International Standard: ISO/IEC 14443-A, NFC Forum Type 2
• User Memory: 144 bytes
• Read Range: Up to 10 cm
• Certificate: WEEE compliant

Specifications

Physical Specifications

• Material: PP Synthetic Paper
• Size: 40×40 mm
• Antenna Size: 34×34 mm

Technical Parameters

• Operating Frequency: HF 13.56 MHz
• Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2
• Read Range: Up to 10 cm
• Capacitance: 50 pF
• Operating Mode: Passive

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: NFC TAG213
• Data Retention: 10 years
• User Memory: 144 bytes
• UID Memory: 7 bytes
• Write Endurance: 100,000 cycles
• Reading Rate: 106 kbit/s
• High Data Integrity: 16-bit CRC
• Anti-Collision Function: Supported
• Password Protection: 32-bit

Additional Information

• Operating Environment:
  • Label Attach: +10°C to +40°C, 20% to 80% RH
  • After Label Attached: -20°C to +50°C, 20% to 80% RH
• Storage Environment:
  • Temperature: 18°C to 28°C
  • Humidity: 40% to 60% RH
• Handling Precautions:
  1. Keep away from water and collision.
  2. Do not bend.
  3. Inlays with black-dot marks are defective; do not use.

Packaging

• Packing Format: Packed in roll, vacuumed packing in ESD bag
• Roll OD: Max. 203.2 mm
• Core ID: 3 inches (76.2 ± 0.50 mm)
• Packing Quantity: 1000 pcs/roll (0.555 kg/roll)
