Product Overview

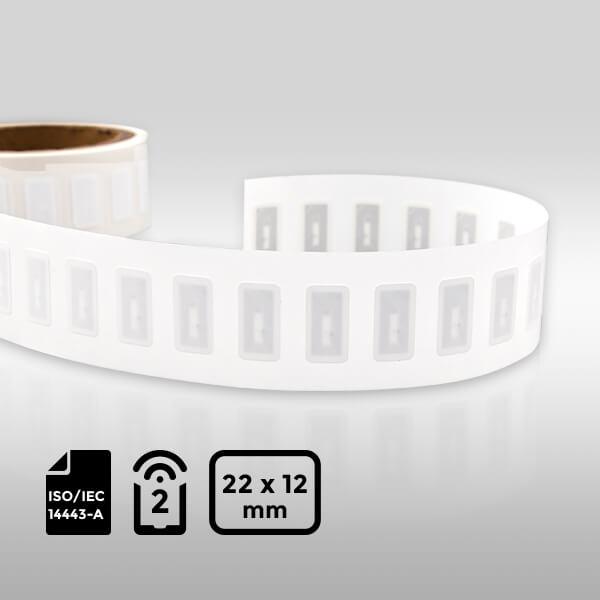

- NFC Label (22x12mm): Powered by the NFC TAG 213 chip.
- Size: 22×12 mm, designed for various applications including contactless payments, smart marketing, and more.
- Compliance: Fully adheres to ISO/IEC 14443-A and NFC Forum Type 2 standards.
- Seamless Connectivity: Compatible with various NFC-enabled devices.
Features
- Frequency Band: HF 13.56 MHz
- Chip Type: NFC TAG 213
- International Standard: ISO/IEC 14443-A, NFC Forum Type 2
- User Memory: 144 bytes
- Read Range: Up to 10 cm
- Certificate: WEEE compliant
Specifications
Physical Specifications
- Material: Coated Paper/PP Synthetic Paper
- Size: 22×12 mm
- Antenna Size: 18×8 mm
Technical Parameters
- Operating Frequency: HF 13.56 MHz
- Communication Protocol: ISO/IEC 14443-A, NFC Forum Tag Type 2
- Read Range (on-metal): Up to 10 cm
- Capacitance: 50 pF
- Operating Mode: Passive
Additional Information
- Operating Environment:
- Label Attach: 10°C to 40°C, 20% to 80% RH
- After Label Attached: -20°C to 50°C, 20% to 80% RH
- Storage Environment:
- Temperature: 18°C to 28°C
- Humidity: 40% to 60% RH
- Handling Precautions:
- Keep away from water and collision.
- Do not bend.
- Inlays with black-dot marks are defective; do not use.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: NFC TAG 213
- Data Retention: 10 years
- User Memory: 144 bytes
- UID Memory: 7 bytes
- Write Endurance: 100,000 cycles
- Reading Rate: 106 Kbit/s
- Anti-Collision Function: Supported
Packaging
- Packing Format: Packed in roll, vacuumed packing in ESD bag
- Roll OD: Max. 203.2 mm
- Core ID: 3 inches (76.2 mm)
- Packing Quantity: 500/1000 pcs/roll (0.125 kg/0.164 kg/roll)
