Product Overview

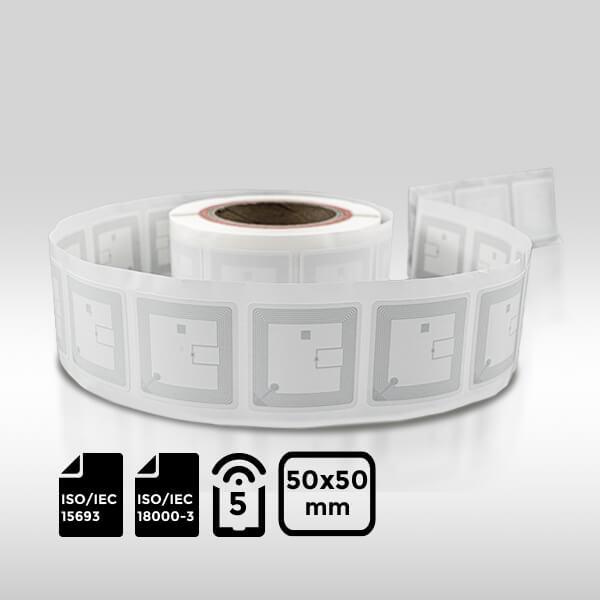

- NFC Label (50x50mm): Features the renowned RFID SLIX chip.
- Size: 50×50 mm.
- Compliance: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
- Trusted by: Libraries and various industries for efficient and accurate tracking.
Features
- Frequency Band: HF 13.56 MHz
- Chip Type: RFID SLIX
- International Standard: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
- User Memory: 896 bits
- Read Range: Up to 1.5 meters
- Certificate: WEEE compliant
Specifications
Physical Specifications
- Material: Coated Paper
- Label Size: 50×50 mm
- Antenna Size: 45×45 mm
Technical Parameters
- Operating Frequency: HF 13.56 MHz
- Communication Protocol: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
- Read Range: Up to 1.5 meters
- Capacitance: 23.5 pF
- Operating Mode: Passive
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: RFID SLIX
- Data Retention: 50 years
- User Memory: 896 bits
- TID Memory: 64 bits
- Write Endurance: 100,000 cycles
- Reading Rate: 53 Kbit/s
- High Data Integrity: 16-bit CRC
- Lock Mechanism: EAS, AFI, DSFI
- Anti-Collision Function: Yes
- Password Protection: 32-bit protected EAS and AFI functionality
Additional Information
- Operating Environment:
- Label Attach: 10°C~40°C, 20%~80% RH
- After Label Attached: -20°C~50°C, 20%~80% RH
- Storage Environment:
- Temperature: 18°C~28°C
- Humidity: 40%~60% RH
- Handling Precautions:
- Do not bend.
- Keep away from water and collision.
Packaging
- Packing Format: Packed in roll, vacuumed packing in ESD bag
- Roll OD: Max. 203.2 mm
- Core ID: 3 inches (76.2±0.5 mm)
- Packing Quantity: 1000 pcs/roll (0.803 kg/roll)
