Features:

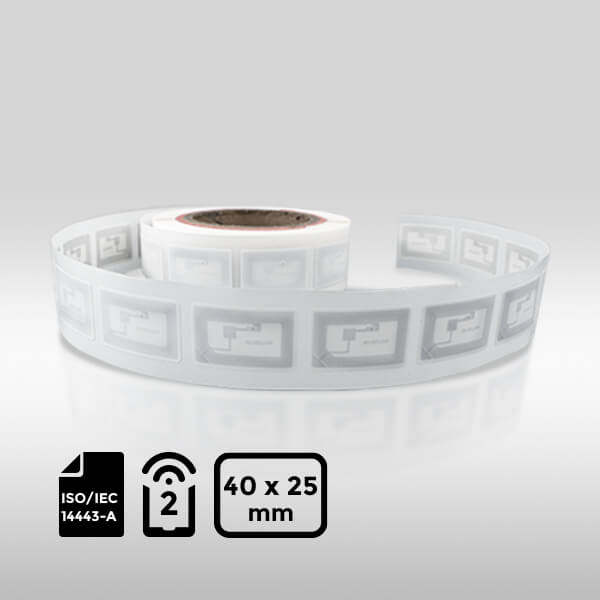

- High Efficiency: Our 25×40 mm NFC Label integrates next-level efficiency with the NFC TAG213 chip.
- Standard Compliance: Conforms to ISO/IEC 14443-A and NFC Forum Type 2 standards.
- Fast Data Transfer: Features fast data transfer rates and 144 bytes of user memory.
- Anti-Collision: Equipped with anti-collision algorithms for quick and reliable scans.
- Versatile Applications: Suitable for high-demand logistics, smart packaging, and secure event ticketing.
- Environmental Compliance: WEEE compliant.
Specifications:
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG213.
- International Standard: ISO/IEC 14443-A, NFC Forum Type 2.
- User Memory: 144 bytes.
- Read Range: Up to 10 cm.
Physical Specifications:
- Material: Coated paper.
- Size: 25×40 mm.
- Antenna Size: 22×37 mm.
Technical Parameters:
- Operating Frequency: HF 13.56 MHz.
- Communication Protocol: ISO/IEC 14443-A, NFC Forum Tag Type 2.
- Read Range (on-metal): Up to 10 cm.
- Capacitance: 50 pF.
- Operating Mode: Passive.
Additional Information:
- Operating Environment:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
- Storage Environment: 18°C to 28°C, 40% to 60% RH.
- Handling Precautions:
- Keep away from water and collision.
- Do not bend.
- Labels with black-dot marks are defective and should not be used.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: NFC TAG213.
- Data Retention: 10 years.
- User Memory: 144 bytes.
- UID Memory: 7 bytes.
- Write Endurance: 100,000 cycles.
- Reading Rate: 106 Kbit/s.
- Anti-Collision Function: Supported.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 8.86 inches/225 mm.
- Core ID: 3 inches/76.2 mm.
- Packing Quantity: 100 pcs/roll (0.0466 kg/roll).
RFID Card (NFC TAG213):
- Material: Photo-quality standard PVC sheets.
- Size: CR80.
- Compatibility: Suitable for most direct thermal or thermal transfer card printers.
