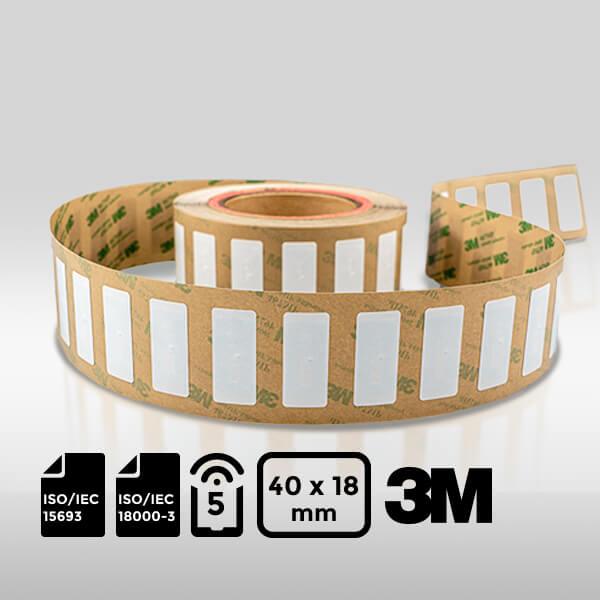

NFC Label 40x18mm RFID Slix 2 | ISO15693

Product Overview

• RFID SLIX 2 RFID Label: A high-frequency label sized at 40×18 mm, operating at 13.56 MHz.
• User Memory: 2528 bits.
• Enhanced Anti-Collision Features: Ensures reliable performance up to a 1.5-meter read range.
• Ideal for: Library management, document tracking, and asset management.
• Secure Attachment: Uses 3M adhesive for firm and secure attachment.

Features

• Frequency Band: HF 13.56 MHz
• Chip Type: RFID SLIX 2
• International Standard: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
• EEPROM: 2560 bits user memory
• Unique Identifier (UID): 64-bit
• Certificate: WEEE compliant

Specifications

Physical Specifications

• Material: Coated paper + 3M467 adhesive | Coated paper
• Label Size: 40×18 mm
• Inlay Size: 32×15 mm
• Substrate: PET
• Antenna Etching Method: Aluminum etching (10µm) + PET (38µm) + Aluminum etching (30µm)

Technical Parameters

• Operating Frequency: 13.56 MHz
• Communication Protocol: ISO15693, ISO 18000-3, NFC Forum Tag 5 Type
• Reading Distance: Up to 1.5 meters
• Operating Mode: Passive

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: RFID SLIX 2
• Data Transfer Rate: Up to 53 kbit/s
• Input Capacitance: 23.5 pF
• Anti-Collision: Yes
• EEPROM: 2560 bits user memory, organized in 80 blocks of 4 bytes each
• Unique Identifier (UID): 64-bit
• EAS Protection: 32-bit password
• AFI Protection: 32-bit password
• Memory Protection: 32-bit password
• Originality Signature: 32 bytes
• Write Endurance: 100,000 cycles
• Data Retention: 50 years

Additional Information

• Operating Environment:
  • Label Attach: 10°C~40°C, 20%~80% RH
  • After Label Attached: -20°C~50°C, 20%~80% RH
• Storage Environment:
  • Temperature: 18°C~28°C
  • Humidity: 40%~60% RH
• Handling Precautions:
  1. Do not bend.
  2. Keep away from water and collision.
  3. Inlays with black-dot marks are defective; do not use.

Packaging

• Packing Format: In roll, packed in ESD bag
• Roll OD Size: Max. 139/155 mm
• Core ID: 3 inches (76.20±0.50 mm)
• Packing Quantity:
  • 1000 pcs/roll, single roll weight 0.442 kg
  • 2000 pcs/roll, single roll weight 0.92 kg
