Product Overview

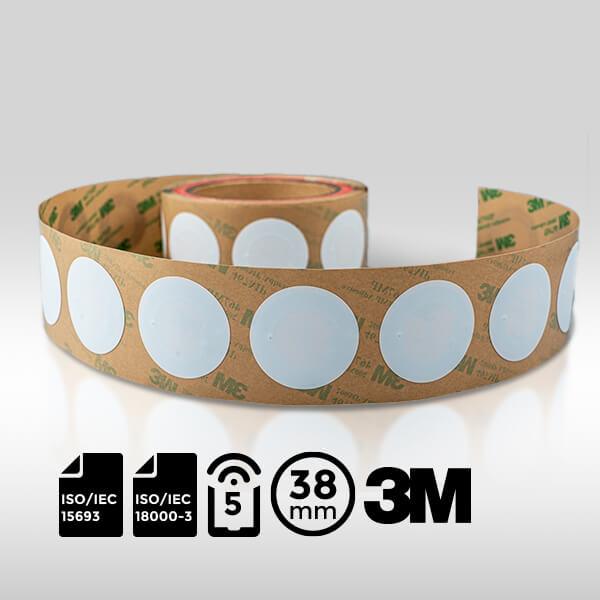

- Optimize your asset management with our 38mm NFC Label.
- Crafted with printable PET material compatible with thermal transfer printers.
- Engineered with RFID SLIX IC technology and backed by 3M467 adhesive.
- ISO15693 and NFC Type 5 compliant, ensuring secure and efficient tracking of high-value assets.
Features
- Frequency Band: HF 13.56 MHz
- Chip Type: RFID SLIX
- International Standard: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
- User Memory: 896 bits
- Read Range: Up to 1.5 meters
- Certificate: WEEE compliant
Specifications
Physical Specifications
- Material: PET + 3M adhesive
- Size: Diameter 38 mm
- Antenna Size: Diameter 34 mm
Technical Parameters
- Operating Frequency: HF 13.56 MHz
- Communication Protocol: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
- Read Range: Up to 1.5 meters
- Capacitance: 23.5 pF
- Operating Mode: Passive
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: RFID SLIX
- Data Retention: 50 years
- User Memory: 896 bits
- TID Memory: 64 bits
- Write Endurance: 100,000 cycles
- Reading Rate: 53 Kbit/s
- Anti-collision Speed: Up to 60 units/s
- Lock Mechanism: EAS AFI DSFI
- Protection Type: 32-bit password
Additional Information
- Operating Environment:
- Label Attach: 10°C~40°C, 20%~80% RH
- After Label Attached: -20°C~50°C, 20%~80% RH
- Storage Environment:
- Temperature: 18°C~28°C
- Humidity: 40%~60% RH
Packaging
- Packing Format: Packed in roll, vacuumed packing in ESD bag
- Roll OD: Max. 203.2 mm
- Core ID: 3 inches (76.2 mm)
- Packing Quantity: 1000 pcs/roll (0.594 kg/roll)
Differences Between RFID SLIX Variants
- RFID SLIX Family:
- RFID SLIX:
- User Memory: 896 bits
- EEPROM: 1024 bits (32 blocks of 4 bytes each)
- Does not support EAS selection and memory protection.
- RFID SLIX 2:
- User Memory: 2528 bits
- EEPROM: 2560 bits (80 blocks of 4 bytes each)
- Supports EAS, Label Destroy, and Privacy Mode.
- RFID SLIX-L:
- User Memory: 256 bits
- EEPROM: 512 bits (16 blocks of 4 bytes each)
- Supports EAS, Label Destroy, and Privacy Mode.
- RFID SLIX-S:
- User Memory: 1280 bits
- EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each)
- Supports EAS, Label Destroy, and Privacy Mode.
