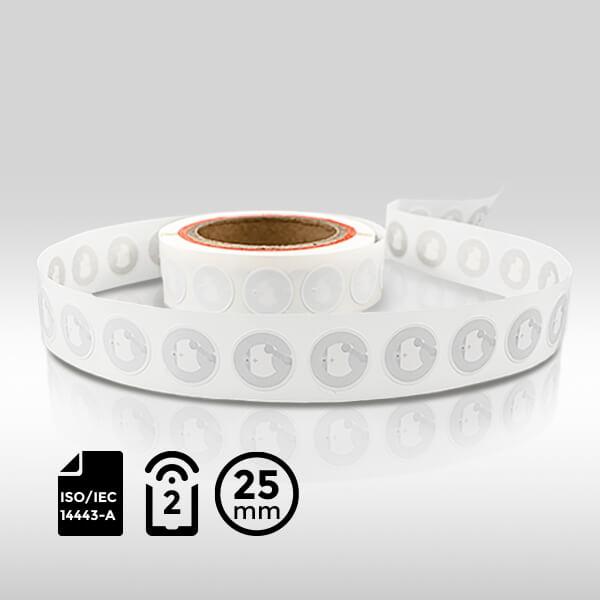

Discover the Perfection of Size and Performance with Our Ø25mm NFC Label:
- Powerful Chip: Equipped with the NFC TAG213 chip.
- Standard Compliance: Meets ISO/IEC 14443-A and NFC Forum Type 2 standards.
- Fast Data Transfer: Ensures quick and secure data handling.
- Secure Storage: Provides reliable data storage.
- Ideal Applications: Perfect for dynamic advertising, smart packaging, and secure ticketing.
- Compact Design: Ø25mm diameter, ideal for space-constrained applications.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG213.
- International Standard: ISO/IEC 14443-A, NFC Forum Type 2.
- User Memory: 144 bytes.
- Read Range: Up to 10 cm.
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: Coated Paper.
- Size: Diameter 25 mm.
- Antenna Size: Diameter 22 mm.
Technical Parameters:
- Operating Frequency: HF 13.56 MHz.
- Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2.
- Read Range (on-metal): Up to 10 cm.
- Capacitance: 50 pF.
- Operating Mode: Passive.
Additional Information:
Operating Environment:
- Label Attachment: +10°C to +40°C, 20% to 80% RH.
- After Label Attachment: -20°C to +50°C, 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Keep away from water and collision.
- Do not bend.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: NFC TAG213.
- Data Retention: 10 years.
- User Memory: 144 bytes.
- UID Memory: 7 bytes.
- Write Endurance: 100,000 cycles.
- Reading Rate: 106 Kbit/s.
- Anti-Collision Function: Supported.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 8 inches (203.2 mm).
- Core ID: 3 inches (76.2 mm).
- Packing Quantity: 500 pcs/roll (0.132 kg/roll).
RFID Card (NFC TAG213):
- Material: Photo-quality standard PVC sheets.
- Size: CR80.
- Compatibility: Suitable for most direct thermal or thermal transfer card printers.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Readers to Match:
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG213.
- International Standard: ISO/IEC 14443-A, NFC Forum Type 2.
- User Memory: 144 bytes.
- Read Range: Up to 10 cm.
- Certificate: WEEE compliant.
