Product Overview

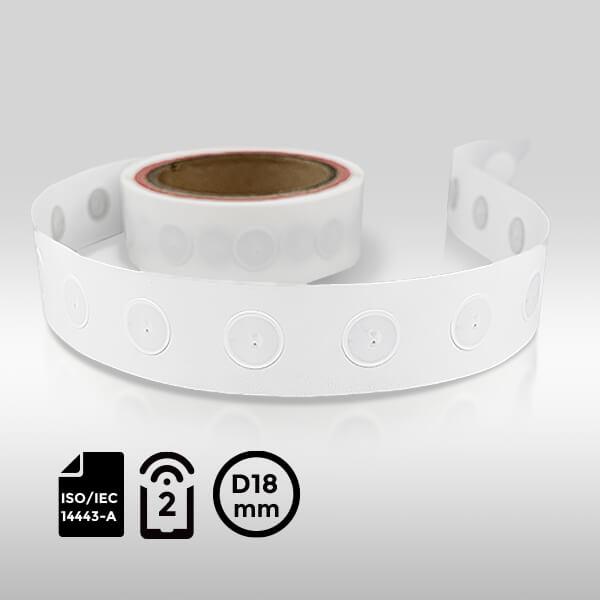

- Integrate high-performance tracking with our ISO14443A 13.56MHz NFC Label.
- Engineered with the advanced NFC TAG213 chip.
- Ultra-compact design with a diameter of 18mm.
- Optimized for multiple applications, including asset tracking, smart advertising, and secure event access.
- Features fast data transfer rate and 144 bytes of user memory.
- Built-in anti-collision features and password protection for enhanced security.
Features
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG213.
- International Standard: ISO/IEC 14443-A, NFC Forum Type 2.
- User Memory: 144 bytes.
- Read Range: Up to 10 cm.
- Certificate: WEEE compliant.
Technical Parameters
- Operating Frequency: HF 13.56 MHz.
- Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2.
- Read Range (on-metal): Up to 10 cm.
- Capacitance: 50 pF.
- Operating Mode: Passive.
Physical Specifications
- Material: Coated paper.
- Size: Diameter 18 mm.
- Antenna Size: Diameter 15 mm.
Chip Characteristics
- Manufacturer: Contact Customer Service.
- Chip Type: NFC TAG213.
- Data Retention: 10 years.
- User Memory: 144 bytes.
- UID Memory: 7 bytes.
- Write Endurance: 100,000 cycles.
- Reading Rate: 106 Kbit/s.
- Data Integrity: 16-bit CRC.
- Anti-Collision Function: Supported.
- Password Protection: 32-bit.
Operating Environment
- Label Attachment:
- Temperature: +10°C to +40°C.
- Humidity: 20% to 80% RH.
- After Label Attached:
- Temperature: -20°C to +50°C.
- Humidity: 20% to 80% RH.
- Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions
- Keep away from water and collision.
- Do not bend.
Packaging
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD: Maximum 203.2 mm.
- Core ID: 3 inches (76.20 ± 0.50 mm).
- Packing Quantity: 1000 pieces per roll (0.24 kg per roll).
Additional Information
- Product Datasheet: NFC TAG213 Datasheet.
- RFID Card: NFC TAG213 RFID card made with photo-quality standard PVC sheets (CR80 size), suitable for use with most direct thermal or thermal transfer card printers.
