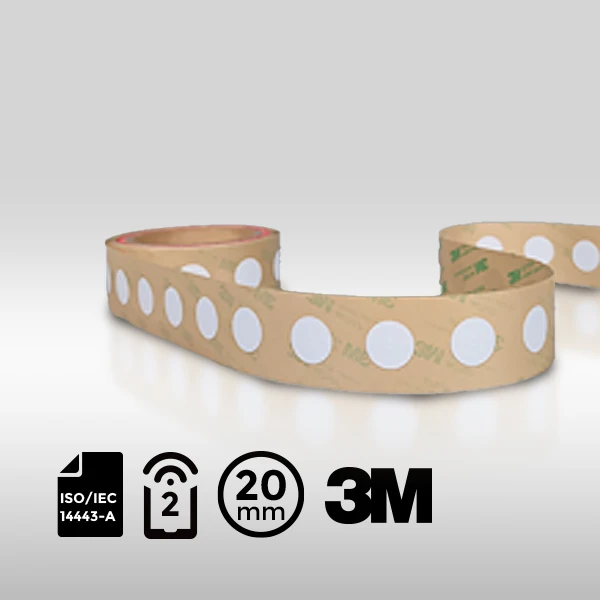

Experience the Cutting-Edge with the NFC Label Ø20mm NFC TAG 213:
- Compact Design: Ø20mm diameter, ideal for various applications.
- Chip: NFC TAG 213.
- Standard Compliance: ISO/IEC 14443-A, NFC Type 2.
- Rapid Data Interaction: 106 Kbit/s reading rate.
- Security Features: Robust security with 7-byte UID and 144 bytes of user memory.
- Compatibility: Broad compatibility with NFC devices.
- Applications: Ideal for product authentication, smart posters, event ticketing, and more.
Features:
- Frequency Band: 13.56 MHz.
- Chip Type: NFC TAG 213.
- International Standard: ISO/IEC 14443-A, NFC Type 2.
- UID: 7 bytes.
- User Memory: 144 bytes.
- Reading Rate: 106 Kbit/s.
Specifications:
Physical Specifications:
- Label Dimensions: Ø20mm.
- Antenna Dimensions: Ø15mm.
- Thickness: 0.25mm (0.010 in).
- Core Diameter: 3 inches.
- Outer Diameter: Max. 8 inches.
- Labels per Roll: 1000-5000.
Material Selection:
- PET + 3M Adhesives.
- PVC + 3M Adhesives.
- Coated Paper.
- PP Synthetic Paper.
- On-Metal.
RF Specifications:
- IC Type: NFC TAG 213.
- UID: 7 bytes.
- User Memory: 144 bytes.
- Reading Rate: 106 Kbit/s.
- Capacitance: 50 pF.
- Supported Protocols: ISO/IEC 14443-A, NFC Type 2.
- Operating Frequency: 13.56 MHz.
- Data Retention: 10 years.
- Write Endurance: 100,000 cycles.
- Anti-Collision Function: Yes.
Environmental Specifications:
- Operating Limits: -40°C to +70°C, 20% to 90% RH.
- Storage Limits: -25°C to +90°C, 20% to 90% RH.
Applications:
- Last-Mile Interaction.
- Customer Engagement.
- Event Ticketing.
- Smart City.
RFID Card (NFC TAG 213):
- Material: Photo-quality standard PVC sheets.
- Size: CR80.
- Compatibility: Suitable for most direct thermal or thermal transfer card printers.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Readers to Match:
- Frequency Band: 13.56 MHz.
- Chip Type: NFC TAG 213.
- International Standard: ISO/IEC 14443-A, NFC Type 2.
- UID: 7 bytes.
- User Memory: 144 bytes.
- Reading Rate: 106 Kbit/s.
Available Readers:
- Desktop HF ISO 14443-A NFC Reader.
- Fixed NFC Readers (ISO/IEC 14443-A compliant).
