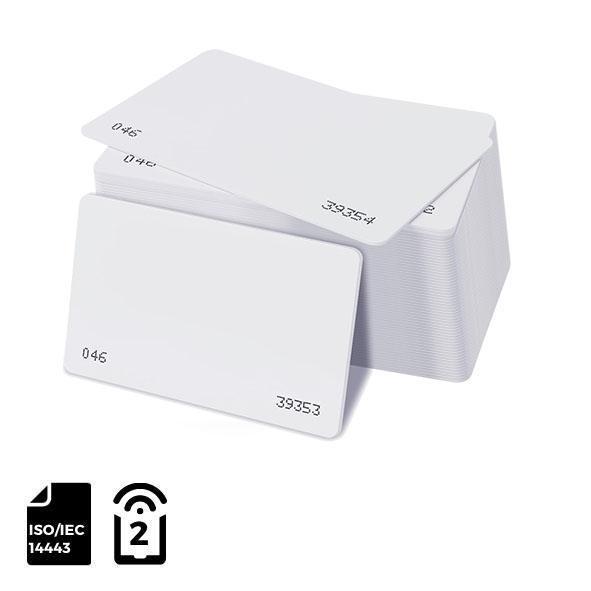

Product Overview
- Material and Size: Made with photo-quality standard PVC sheets in the CR80 size (85.6 mm x 54 mm).
- Programming: Programmed with a 7-byte UID and 888 bytes of user memory available (222 pages).
- Compliance: NFC TAG 216 NFC ICs fully comply with NFC Forum Type 2 Tag and ISO/IEC 14443 Type A specifications.
Frequency Band
- Operating Frequency: 13.56 MHz.
Chip Type
- IC Type: NFC TAG 216.
International Standard
- Standard Compliance: ISO/IEC 14443-A | NFC Type 2.
Memory Specifications
- User Memory: 888 Bytes.
- UID Type: 7 Bytes.
Data Transfer
- Transfer Rate: 106 kbit/s.
Physical Specifications
- Card Dimensions: 86×54 mm.
- Card Thickness: Approximately 0.88 mm.
- Material Options:
- Black Core PVC
- White Core PVC
- White Core PET (WEEE Directive compliant)
- White Core ABS (WEEE Directive compliant)
- Wooden (WEEE Directive compliant)
Self-Printing Compatibility
- Standard Size: CR80 blank RFID card (3.375″ x 2.125″, 85.6 mm x 54 mm).
- Printer Compatibility: Compatible with most direct-to-card and retransfer ID card printers.
Environmental Specifications
- Operating Limits: -40 to +100°C, 20% to 90% RH.
- Storage Limits: -25° to +90°C, 20% to 90% RH.
RF Specifications
- IC Type: NFC TAG 216.
- UID: 7 Bytes.
- User Memory: 888 Bytes.
- Reading Rate: 106 Kbit/s.
- Capacitance: 50 pF.
- Supported Protocols: ISO/IEC 14443-A | NFC Type 2.
- Operating Frequency: 13.56 MHz.
- Data Retention: 10 years.
- Write Endurance: 100,000 cycles.
- Anti-Collision Function: Yes.
Customization Options
- Pre-Printing
- Barcode Printing
- Embossing
- Holograms
- Signature Panels
- UV Printing
- Hot Stamping
- Punch Holes
