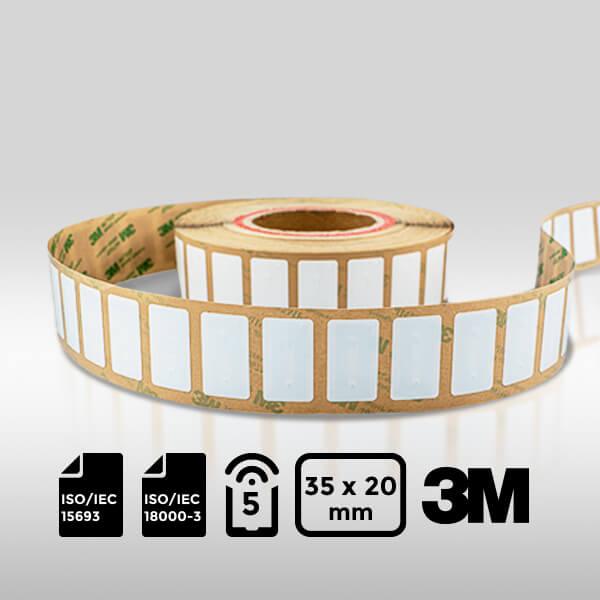

iso15693 | NFC type-5 35x20mm NFC Label RFID Slix 2

Product Overview

• Our 35×20mm NFC Label is engineered for precision with the RFID SLIX2 chip.
• Conforms to ISO15693 and NFC Type-5 standards.
• Features fast read/write speed and reliable 3M adhesive backing.
• Ideal for advanced NFC applications requiring robustness and high-frequency communication.

Features

• Frequency Band: 13.56 MHz.
• Chip Type: RFID SLIX2.
• International Standards: ISO15693, ISO 18000-3, NFC Forum Tag 5 Type.
• UID: 64-bit.
• EEPROM: 2560 bits user memory (80 blocks of 4 bytes each).
• Data Transfer Rate: Up to 53 kbit/s.

Technical Parameters

• Operating Frequency: 13.56 MHz.
• Communication Protocol: ISO15693, ISO 18000-3, NFC Forum Tag 5 Type.
• Reading Distance: Up to 1.5 meters.
• Operating Mode: Passive.

Chip Characteristics

• Manufacturer: Contact Customer Service.
• Chip Type: RFID SLIX2.
• Data Transfer Rate: Up to 53 kbit/s.
• Input Capacitance: 23.5 pF.
• Anti-Collision: Yes.
• EEPROM: 2560 bits user memory (80 blocks of 4 bytes each).
• Unique Identifier (UID): 64-bit.
• EAS Protection: 32-bit password.
• AFI Protection: 32-bit password.
• Memory Protection: 32-bit password.
• Originality Signature: 32 bytes.
• Write Endurance: 100,000 cycles.
• Data Retention: 50 years.

Physical Specifications

• Material: PET + 3M467 adhesive.
• Label Size: 35×20 mm.
• Inlay Size: 32×14 mm.
• Substrate: PET.
• Antenna Etching Method: Aluminum etching (10µm) + PET (38µm) + Aluminum etching (30µm).

Operating Environment

• Label Attachment:
  • Temperature: 10°C to 40°C.
  • Humidity: 20% to 80% RH.
• After Label Attached:
  • Temperature: -20°C to 50°C.
  • Humidity: 20% to 80% RH.
• Storage Environment:
  • Temperature: 18°C to 28°C.
  • Humidity: 40% to 60% RH.

Handling Precautions

1. Do not bend.
2. Keep away from water and collision.
3. Inlays with black-dot marks are defective and should not be used.

Packaging

• Packing Format: In roll, packed in ESD bag.
• Roll OD Size: Maximum 152 mm.
• Core ID: 3 inches (76.20 ± 0.50 mm).
• Packing Quantity: 1500 ± 2 pieces per roll, 8 rolls per carton.

RFID SLIX Family Comparison

• RFID SLIX:
  • User Memory: 896 bits.
  • EEPROM: 1024 bits (32 blocks of 4 bytes each).
  • Does not support EAS selection or memory protection.
• RFID SLIX2:
  • User Memory: 2528 bits.
  • EEPROM: 2560 bits (80 blocks of 4 bytes each).
  • Supports EAS and AFI protection with 32-bit passwords.
• RFID SLIX-L:
  • User Memory: 256 bits.
  • EEPROM: 512 bits (16 blocks of 4 bytes each).
  • Supports EAS and AFI protection with 32-bit passwords.
• RFID SLIX-S:
  • User Memory: 1280 bits.
  • EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each).
  • Supports EAS and AFI protection with 32-bit passwords.
