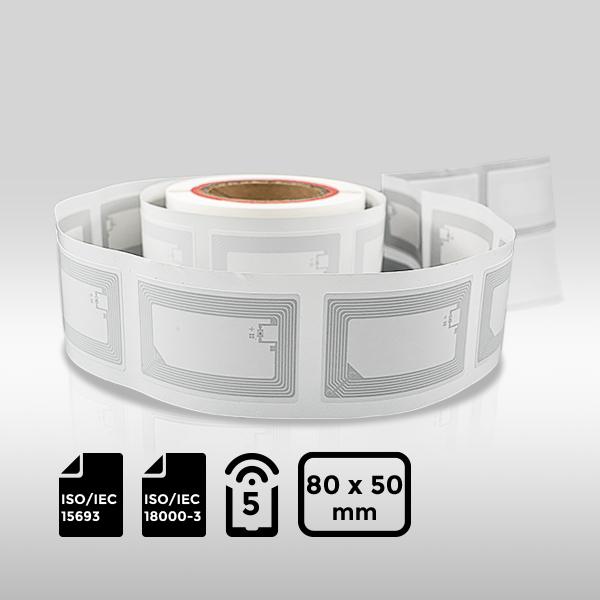

NFC Label (50×80 mm) with RFID SLIX Chip:
- Size: 50×80 mm.
- Chip: RFID SLIX.
- Compliance: Meets ISO/IEC 15693, ISO/IEC 18000-3, and NFC Forum Tag Type 5 standards.
- Frequency Band: HF 13.56 MHz.
- User Memory: 896 bits.
- Read Range: Up to 1.5 meters.
- Certificate: WEEE compliant.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: RFID SLIX.
- International Standard: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
- User Memory: 896 bits.
- Read Range: Up to 1.5 meters.
Specifications:
Physical Specifications:
- Material: Coated Paper.
- Size: 50×80 mm.
- Antenna Size: 45×76 mm.
Technical Parameters:
- Operating Frequency: HF 13.56 MHz.
- Communication Protocol: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
- Read Range: Up to 1.5 meters.
- Capacitance: 23.5 pF.
- Operating Mode: Passive.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: RFID SLIX.
- Data Retention: 50 years.
- User Memory: 896 bits.
- TID Memory: 64 bits.
- Write Endurance: 100,000 cycles.
- Reading Rate: 53 Kbit/s.
- Data Integrity: 16-bit CRC.
- Lock Mechanism: EAS, AFI, DSFID.
- Anti-Collision Function: Yes.
- Password Protection: 32-bit protected EAS and AFI functionality.
Additional Information:
Operating Environment:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 203.2 mm.
- Core ID: 3 inches (76.2 ± 0.5 mm).
- Packing Quantity: 100 pcs/roll (0.169 kg/roll).
RFID SLIX Family:
- RFID SLIX:
- User Memory: 896 bits.
- EEPROM: 1024 bits (32 blocks of 4 bytes each).
- Does Not Support: EAS selection and memory protection.
- RFID SLIX 2:
- User Memory: 2528 bits.
- EEPROM: 2560 bits (80 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-L:
- User Memory: 256 bits.
- EEPROM: 512 bits (16 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-S:
- User Memory: 1280 bits.
- EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
