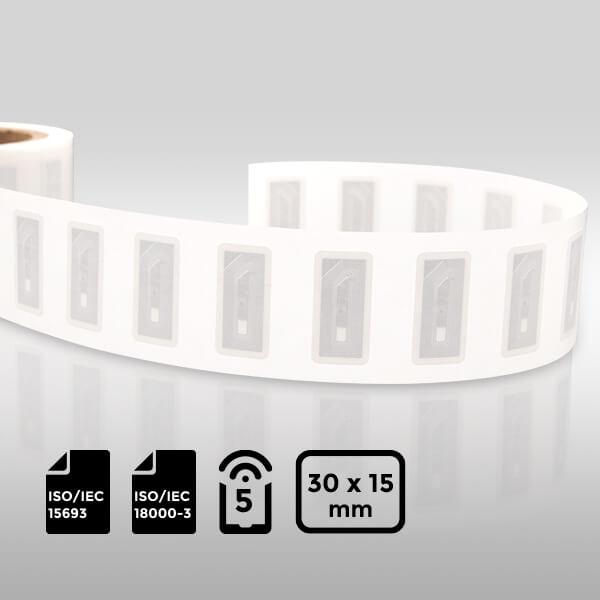

ISO15693 NFC Label with RFID SLIX2 Chip:
- Compact Design: 30×15 mm size.
- Advanced Chip: Equipped with the RFID SLIX2 chip.
- Extended Read Range: Up to 1.5 meters.
- High Data Transfer Rate: Up to 53 kbit/s.
- Large User Memory: 2560 bits (80 blocks of 4 bytes each).
- Security Features: EAS, AFI, and memory protection with 32-bit passwords.
- Applications: Ideal for inventory control, access management, and Contact Customer Service RFID solutions.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: RFID SLIX2.
- International Standard: ISO15693, ISO 18000-3, NFC Forum Tag 5 Type.
- Data Transfer Rate: Up to 53 kbit/s.
- Input Capacitance: 23.5 pF.
- EEPROM: 2560 bits user memory (80 blocks of 4 bytes each).
Specifications:
Physical Specifications:
- Material: Coated paper.
- Label Size: 30×15 mm.
- Inlay Size: 26×11 mm.
- Substrate: PET.
- Antenna Etching Method: Aluminum etching (10+30 µm).
Technical Parameters:
- Operating Frequency: 13.56 MHz.
- Communication Protocol: ISO15693, ISO 18000-3, NFC Forum Tag 5 Type.
- Reading Distance: Up to 1.5 meters.
- Operating Mode: Passive.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: RFID SLIX2.
- Data Transfer Rate: Up to 53 kbit/s.
- Input Capacitance: 23.5 pF.
- Anti-collision: Yes.
- EEPROM: 2560 bits user memory (80 blocks of 4 bytes each).
- Unique Identifier (UID): 64-bit.
- EAS Protection: 32-bit password.
- AFI Protection: 32-bit password.
- Memory Protection: 32-bit password.
- Originality Signature: 32 bytes.
- Write Endurance: 100,000 cycles.
- Data Retention: 50 years.
Additional Information:
Operating Environment:
- Temperature: -40°C to 70°C.
- Humidity: 20% to 90% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective and should not be used.
Packaging:
- Packing Format: In rolls, packed in ESD bags.
- Roll OD Size: Max. 185 mm.
- Core ID: 3 inches (76.20 ± 0.50 mm).
- Packing Quantity: 1000 ± 10 pcs/roll, 8 rolls/carton.
RFID SLIX Family:
- RFID SLIX:
- User Memory: 896 bits.
- EEPROM: 1024 bits (32 blocks of 4 bytes each).
- Does Not Support: EAS selection and memory protection.
- RFID SLIX 2:
- User Memory: 2528 bits.
- EEPROM: 2560 bits (80 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-L:
- User Memory: 256 bits.
- EEPROM: 512 bits (16 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-S:
- User Memory: 1280 bits.
- EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Readers to Match:
- Frequency Band: HF 13.56 MHz.
- Chip Type: RFID SLIX2.
- International Standard: ISO15693, ISO 18000-3, NFC Forum Tag 5 Type.
- Data Transfer Rate: Up to 53 kbit/s.
- Input Capacitance: 23.5 pF.
- EEPROM: 2560 bits user memory (80 blocks of 4 bytes each).
