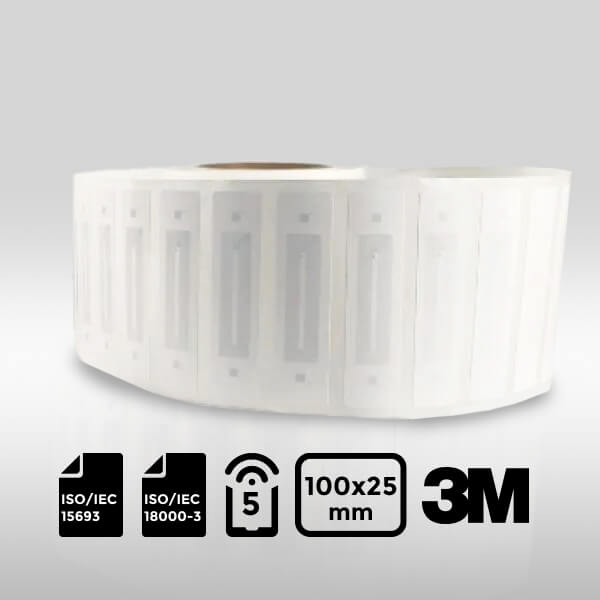

100×25mm NFC Label with RFID SLIX Chip:
- Size: 100×25mm.
- Chip: RFID SLIX.
- Compliance: Meets ISO/IEC 15693, ISO/IEC 18000-3 Mode 1, and NFC Forum Tag Type 5 standards.
- Frequency Band: 13.56 MHz.
- EEPROM: 1024-bit.
- User Memory: 896-bit.
- Certificate: WEEE compliant.
Features:
- Frequency Band: 13.56 MHz.
- Chip Type: RFID SLIX.
- International Standard: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
- EEPROM: 1024-bit.
- User Memory: 896-bit.
Specifications:
Physical Specifications:
- Material: Coated Paper.
- Label Size: 100×25 mm.
- Antenna Size: 60×15 mm.
- Antenna Etching Method: Aluminum etching.
Technical Parameters:
- Operating Frequency: 13.56 MHz.
- Communication Protocol: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
- Reading Distance: Up to 1.5 meters.
- Fast Data Transfer: Up to 53 kbit/s.
- High Data Integrity: 16-bit CRC, framing.
Additional Information:
Operating Environment:
- Temperature: -40°C to 85°C (-40°F to 185°F).
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Labels with black-dot marks are defective and should not be used.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: RFID SLIX.
- EEPROM: 1024-bit.
- User Memory: 896-bit.
- Anti-collision: Yes.
- Unique Identifier (UID): 64-bit.
- Password: 32-bit protected EAS and AFI functionality.
- Write Endurance: 100,000 cycles.
- Data Retention: 50 years.
Packaging:
- Packing Format: In rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 8 inches (about 203 mm).
- Core ID: 3 inches (76.20 ± 0.50 mm).
- Packing Quantity: 100 pcs/roll, single roll weight 0.08 kg.
RFID SLIX Family:
- RFID SLIX:
- User Memory: 896 bits.
- EEPROM: 1024 bits (32 blocks of 4 bytes each).
- Does Not Support: EAS selection and memory protection.
- RFID SLIX 2:
- User Memory: 2528 bits.
- EEPROM: 2560 bits (80 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-L:
- User Memory: 256 bits.
- EEPROM: 512 bits (16 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
- RFID SLIX-S:
- User Memory: 1280 bits.
- EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each).
- Features: EAS selection, memory protection, label destroy, and privacy mode.
