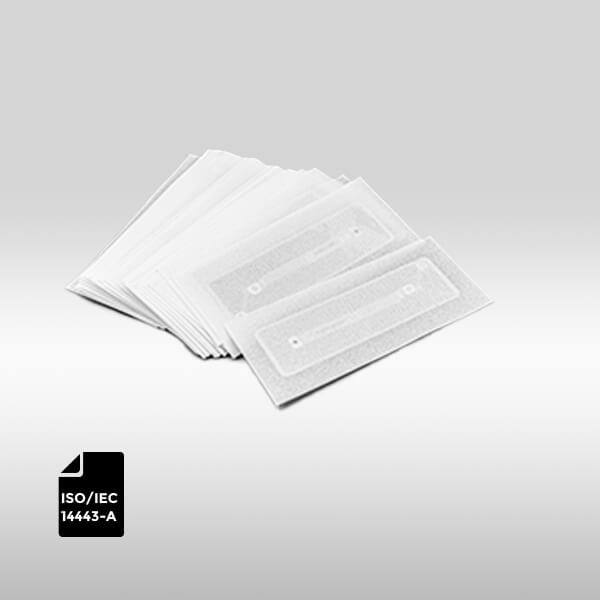

Discover Seamless and Secure Tracking with Our ISO14443A 13.56MHz RFID Sticker:
- Size: Convenient 55×17 mm dimensions.
- Chip: State-of-the-art RFID Classic 1k EV1 | S50 chip.
- Top-Tier Performance: Ensures data reliability and security.
- Applications: Ideal for asset management, event tracking, and access control systems.
- Modern Identification Solution: Meets contemporary identification needs.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: RFID Classic EV1 1K.
- International Standard: ISO/IEC 14443-A.
- EEPROM: 1 kB, organized into 16 sectors of 4 blocks each.
- Read Range: Up to 10 cm.
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: Coated Paper.
- Size: 55×17 mm.
- Antenna Size: 52×15 mm.
Technical Parameters:
- Operating Frequency: HF 13.56 MHz.
- Communication Protocol: ISO/IEC 14443-A.
- Read Range (on-metal): Up to 10 cm.
- Capacitance: 14.9 to 19 pF.
- Operating Mode: Passive.
Additional Information:
Operating Environment:
- Label Attachment: +10°C to +40°C, 20% to 80% RH.
- After Label Attachment: -20°C to +50°C, 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Keep away from water and collision.
- Do not bend.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: RFID Classic EV1 1K.
- Data Retention: 10 years.
- EEPROM Memory: 1 kB, 16 sectors of 4 blocks.
- UID Memory: 7 bytes UID or 4 bytes NUID.
- Write Endurance: 100,000 cycles.
- Reading Rate: 106 Kbit/s.
- Anti-Collision Function: Supported.
Packaging:
- Packing Format: Single sheet delivery, independent small tape packing, packed in foam cotton.
- Release Paper Size: 65×30 mm/sheet.
- Packing Quantity: 100 pcs/roll (0.043 kg/roll).
RFID Classic 1k EV1 RFID Card:
- Material: Photo-quality standard PVC/PET.
- Size: CR80.
- Compatibility: Suitable for most direct thermal or thermal transfer card printers.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Readers to Match:
- Frequency Band: HF 13.56 MHz.
- Chip Type: RFID Classic EV1 1K.
- International Standard: ISO/IEC 14443-A.
- EEPROM: 1 kB, 16 sectors of 4 blocks.
- Read Range: Up to 10 cm.
- Certificate: WEEE compliant.
Available Readers:
- Desktop HF ISO 14443-A RFID Reader.
- Fixed RFID Readers (ISO/IEC 14443-A compliant).
