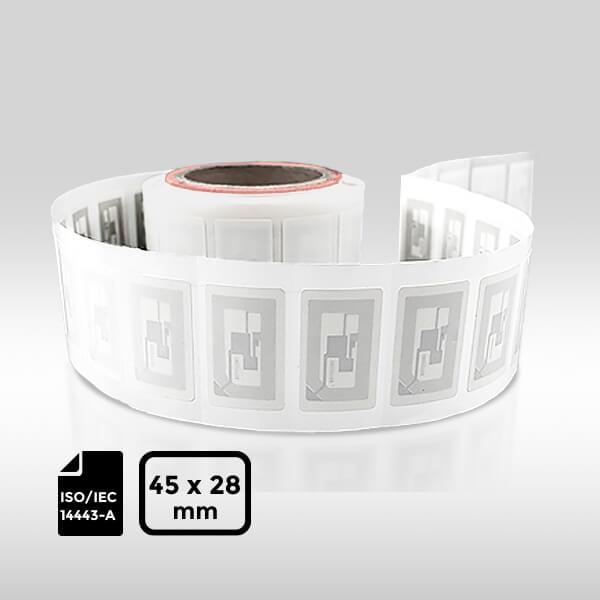

ISO 14443a 13.56MHz RFID Label 45x28mm RFID Classic 1K EV1 | S50

Product Overview

• 45x28mm ISO14443A 13.56MHz RFID Label: The ultimate solution for reliable and secure tracking.
• Chip Technology: Powered by the renowned RFID Classic1k EV1 | S50 chip.
• Compliance: Fully compliant with ISO/IEC 14443-A standards.
• Ideal for: Asset management, access control, and Contact Customer Service applications requiring high data integrity and security.

Features

• Frequency Band: HF 13.56 MHz
• Chip Type: RFID Classic EV1 1k
• International Standard: ISO/IEC 14443-A
• EEPROM: 1 kB, 16 sectors of 4 blocks
• Read Range: Up to 10 cm
• Certificate: WEEE compliant

Specifications

Physical Specifications

• Material: Coated Paper
• Size: 45×28 mm
• Antenna Size: 37×22 mm

Technical Parameters

• Operating Frequency: HF 13.56 MHz
• Communication Protocol: ISO/IEC 14443-A
• Read Range (on-metal): Up to 10 cm
• Capacitance: 14.9 to 16.9 pF
• Operating Mode: Passive

Additional Information

• Operating Environment:
  • Label Attach: +10°C to +40°C, 20% to 80% RH
  • After Label Attached: -20°C to +50°C, 20% to 80% RH
• Storage Environment:
  • Temperature: 18°C to 28°C
  • Humidity: 40% to 60% RH
• Handling Precautions:
  1. Keep away from water and collision.
  2. Do not bend.

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: RFID Classic EV1 1K
• Data Retention: 10 years
• EEPROM: 1 kB, 16 sectors of 4 blocks
• UID Memory: 7-byte UID or 4-byte NUID
• Write Endurance: 100,000 cycles
• Reading Rate: 106 Kbit/s
• High Data Integrity: 16-bit CRC
• Anti-Collision Function: Supported

Packaging

• Packing Format: Packed in roll, vacuumed packing in ESD bag
• Roll OD: Max. 203.2 mm
• Core ID: 3 inches (76.20±0.50 mm)
• Packing Quantity: 500 pcs/roll (0.322 kg/roll)
