Product Overview

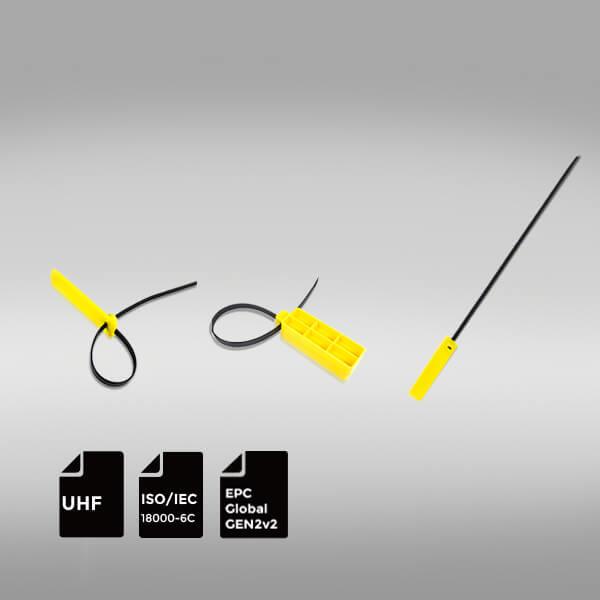

- Product Type: R6 RFID Cable Tie Tag.
- Key Features: Excellent data storage and transmission capabilities, extraordinary durability in outdoor environments, and unique anti-UV feature ensuring stability under long-term direct sunlight.
- Applications: Ideal for logistics tracking, asset management, outdoor advertising, and Contact Customer Service fields requiring exposure to sunlight.
Frequency Band
- Operating Frequency: UHF 860-960 MHz.
Chip Type
- IC Type: R6.
International Standard
- Standard Compliance: ISO/IEC 18000-6C, EPC Global Gen 2v2.
Memory Specifications
- EPC Memory: 96 bits.
- User Memory: 0 bytes.
- TID Memory: 96 bits.
Read Range
- Maximum Read Range: Up to 10 meters.
Tag Type
- Tag Type: Disposable.
Physical Specifications
- Material: ABS and Nylon.
- Dimensions: Please refer to the provided drawings for detailed dimensions.
Additional Information
- Operating Environment: -25°C to +65°C.
- Applications: Logistics tracking, outdoor asset management, and Contact Customer Service applications requiring exposure to sunlight.
Technical Parameters
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2.
- Operating Frequency: UHF 860-960 MHz.
- Read Range: Up to 10 meters.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service.
- Chip Family: R6.
- Write Endurance: 100,000 write cycles.
- Data Retention: 50 years.
- EPC Memory: 96 bits.
- User Memory: 0 bytes.
- TID Memory: 96 bits.
- Read Sensitivity: -22 dBm.
- Write Sensitivity: -17 dBm.
- Memory Write Speed: 1.6 ms for 32 bits, up to 9500 tags/minute using the IMP STP® source tagging platform.
