Product Overview

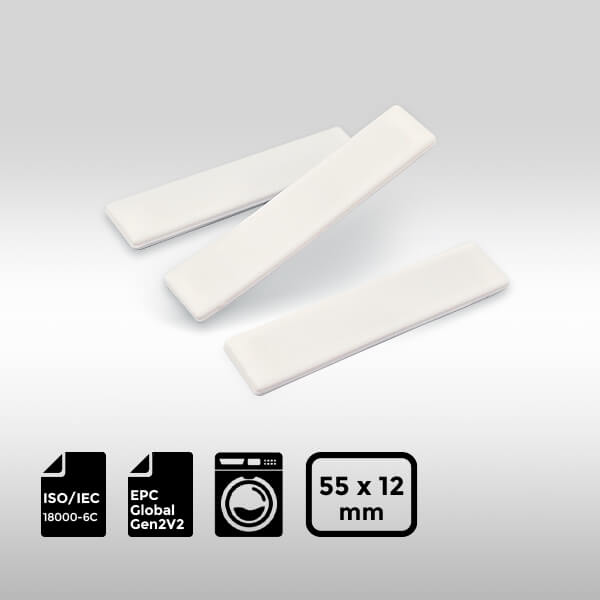

- Product Type: 4QT RFID Silicone Laundry Tag.
- Applications: Widely used in hotel linen and hospital linen management, uniforms control, personnel inspection management, clothing inventory, and management in hotel, hospital, and laundry industries.
- Key Features: Excellent RF performance and reliable product quality, verified by well-known customers globally.
Frequency Band
- Operating Frequency: UHF 860-960 MHz.
Chip Type
- IC Type: 4QT.
International Standard
- Standard Compliance: ISO 18000-6C, EPC Global Gen2v2.
Memory Specifications
- TID Memory: 96-bit.
- EPC Memory: 128-bit.
- User Memory: 512-bit.
- Kill Password: 32-bit.
Operating Temperature
- Temperature Range: -40°C to 85°C.
Physical Specifications
- Material: Silicone.
- Dimensions: 55×12×2.5 mm.
- Weight: 1.94g.
- Surface Color: White.
- Mounting Method: Put inside the pocket and sewing.
Technical Parameters
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO 18000-6C, EPC Global Gen2v2.
- Antenna Polarization Mode: Linear Polarization.
- Reading Distance: Handheld Reader (30 dbi power): Over 7 meters.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service.
- Chip Type: 4QT.
- User Memory: 512-bit.
- EPC Memory: 128-bit.
- TID Memory: 96-bit.
- Read Sensitivity: -19.5 dBm.
- Write Sensitivity: -16.7 dBm.
- Self Adjust: Supported.
- Memory Safeguard: Supported.
- Block Write: 16-bit.
- Permalock: One-time lock.
- Write Endurance: 100,000 write cycles.
- Data Retention Time: 50 years.
Additional Information
- Operating Limits: -40°C to 85°C, 5% to 95% RH.
- Storage Limits: 18°C to 28°C, 40% to 60% RH.
- Applications: Uniforms control, personnel inspection management, clothing inventory, hotel, hospital, laundry industry management, etc.
- Testing:
- Short-term Heat Resistance: Passed 180 degrees @ 2 minutes.
- Drop Test: Passed 200 drops from 1 meter.
- Alcohol Test: Passed by cleaning with 95% alcohol.
- Gasoline Testing: Passed by cleaning with 92# gasoline.
- High and Low Temperature Alternation Test: -40°C to 150°C, 7 cycles of high and low temperature alternation, total of 2 consecutive days of testing passed.
- IP Rating: IP68.
