Product Overview

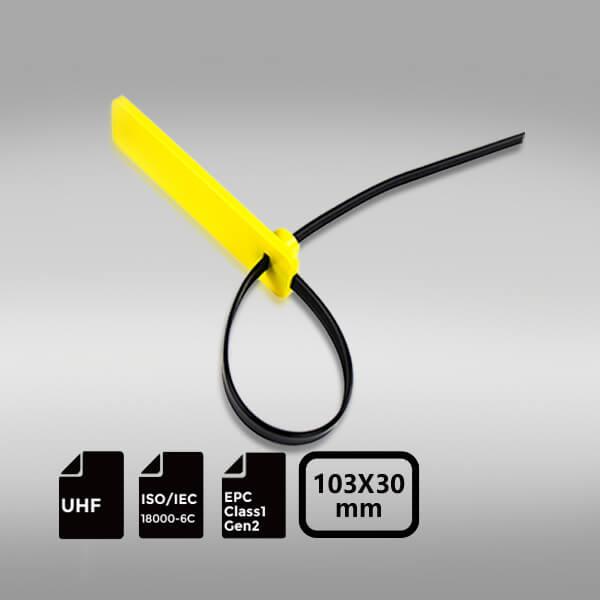

- Product Type: RFID M4QT Cable Tie Tag.
- Key Features: Excellent data storage and transmission capabilities, extraordinary durability in outdoor environments, and unique anti-UV feature ensuring stability under long-term direct sunlight.
- Applications: Ideal for logistics tracking, asset management, outdoor advertising, and Contact Customer Service fields requiring exposure to sunlight.
Frequency Band
- Operating Frequency: UHF 860-960 MHz.
Chip Type
- IC Type: M4QT.
International Standard
- Standard Compliance: ISO/IEC 18000-6C, EPC Class 1 Gen 2.
Memory Specifications
- EPC Memory: 144 bits.
- User Memory: 512 bits.
- TID Memory: 96 bits.
- Kill Password Memory: 32 bits.
Read Range
- Maximum Read Range: Up to 8 meters.
Characteristics
- UV Protection: Suitable for outdoor use.
- Tag Type: Disposable.
- Color: Yellow tag with black tie.
Physical Specifications
- Material: ABS and Nylon.
- Tag Size (L×W): 103×30 mm.
- Cable Tie Size: 400 mm.
Additional Information
- Operating Environment: -25°C to +60°C.
- Applications: Logistics tracking, outdoor asset management, and Contact Customer Service applications requiring exposure to sunlight.
Technical Parameters
- Communication Protocol: ISO/IEC 18000-6C, EPC Class 1 Gen 2.
- Operating Frequency: UHF 860-960 MHz.
- Read Range: Up to 8 meters.
Chip Characteristics
- Chip Manufacturer: IMP.
- Chip Type: M4QT.
- Write Endurance: 100,000 write cycles.
- Data Retention: 50 years.
- EPC Memory: 128 bits.
- User Memory: 512 bits.
- TID Memory: 96 bits.
- Read Sensitivity: -19.5 dBm.
- Write Sensitivity: -16.7 dBm.
- Tag Data Protection: QT technology Access / Kill Short-range mode.
- Memory Safeguard: Yes.
- Product Status Flag Bit: Yes.
- Brand Identifier: Yes.
