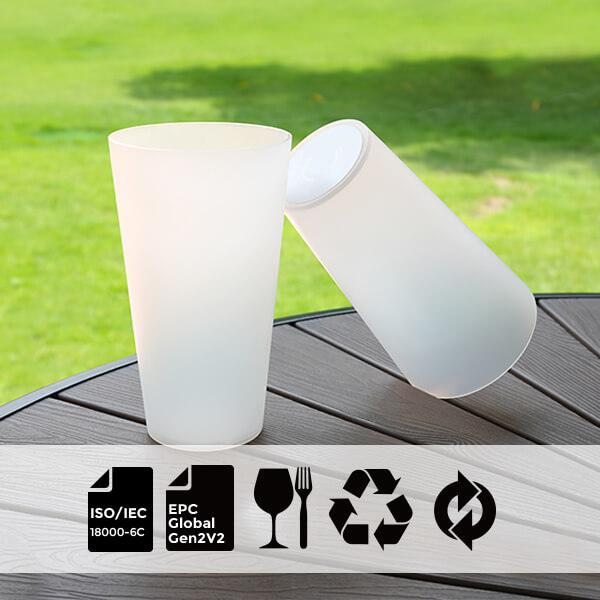

RFID Recyclable Cup

Professional RFID NFC manufacturing service:

– MOQ: 1000pcs

– OEM/ODM service offered

– Accept customization (specifications, color, design, etc.)

– Lead Time: 14 Working days

According to your personalized Ebike designs, or our original designs. Fully customized design, fabric, and pole material, color, size, weight, printed logo, and packaging.

Categories: Recyclable Cup, UHF Tag

Description

Product Overview

Product Type: RFID Recyclable Cup.
Purpose: Designed to improve the efficiency of waste management and recycling processes.
Compatibility: Compatible with EPC Global Gen2v2 and ISO/IEC 18000-6C international communication protocols.
Applications: Suitable for catering, vending machines, public spaces, cafes, restaurants, office events, schools, sports venues, entertainment venues, public institutions, hotels, and parks.

Frequency Band

Operating Frequency: UHF 860-960 MHz.

International Standard

Standard Compliance: ISO/IEC 18000-6C, EPC Global Gen2v2.1.

Memory Specifications

EPC Memory: 96 bits.
User Memory: 0 bits.
TID Memory: 48 bits.
Reserved Memory: Access Password (0 bit), Kill Password (32 bit).

Read Range

Stable Read Range: Within 2 meters.

Physical Specifications

Material: Polypropylene (PP).
Cup Volume: 500 ml | 16.9 oz.
Inlay Size: OD 39mm, ID 17mm.
Antenna Size: Diameter 36mm.
Weight: 67g.

Technical Parameters

Operating Frequency: 860-960 MHz.
Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2.1.
Read Range: Stable performance within 2 meters.
Operating Mode: Passive.

Chip Characteristics

Data Retention: 20 years.
EPC Memory: 96 bits.
User Memory: 0 bits.
TID Memory: 48 bits.
Write Endurance: 100,000 write cycles.

Additional Information

Operating Environment: 20°C to 120°C, 5% to 100% RH.
Storage Environment: -20°C to 40°C, 5% to 100% RH.
Fields of Application: Cafes, restaurants, office events, schools, vending and drinks machines, sports venues, entertainment venues, public institutions, hotels, parks.
