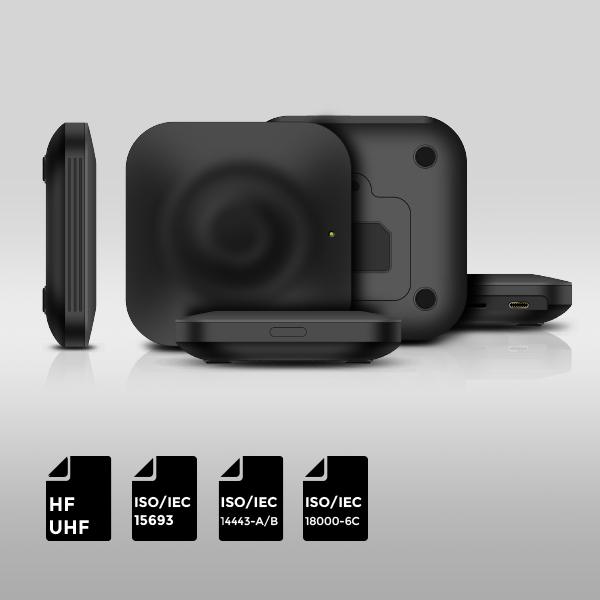

Product Overview:
- This is a high-performance reader/writer with both HF and UHF reading capabilities.
- It supports multiple protocol standards, including ISO 18000-6C, ISO 14443 A/B, and ISO 15693.
- The device offers excellent HF and UHF reading performance, enabling rapid UHF tag reading and maintaining a high recognition rate.
- It is easy to deploy and operate by connecting its USB port to a PC without requiring driver installation.
- Widely used in various RFID applications such as logistics, access control, anti-counterfeiting, and production process control.
Features:
- Frequency Band:
- HF: 13.56 MHz.
- UHF: 860-960 MHz.
- Engine: IMP E310.
- International Standards:
- HF: ISO/IEC 14443A, 14443B, 15693.
- UHF: ISO 18000-6C, EPC C1G2.
Specifications:
Physical Specifications:
- Dimensions: 117 x 117 x 25 mm | 4.6 x 4.6 x 0.98 in.
- Weight: 170 g / 6.0 oz.
- Interface: USB Type-C.
- Cable Length: 1.2 m.
- Notification: LED indicator, buzzer.
- Power Input Voltage:
- DC 3.5-5.25V.
- UHF: 5W @ 25dBm.
- HF: 2W.
- Standby: 0.4W.
Environmental Specifications:
- Operating Limits: -25°C to +65°C, 10% to 95% RH.
- Storage Limits: -40°C to +85°C, 10% to 95% RH.
- PSAM Slot: 1 slot.
- Protocol: ISO7816 T=0, T=1.
UHF RFID Engine:
- Module: Based on IMP E310.
- Frequency: 865-868 MHz | 902-928 MHz | 920–925 MHz.
- Protocol: EPC C1G2, ISO 18000-6C.
- Output Power: +2dBm to +25dBm adjustable, accuracy ±1dB.
- Antenna: Circular Polarized Antenna.
- Read/Write Range: Up to 15 cm.
HF RFID Protocol:
- Standards: ISO/IEC 14443A, 14443B, 15693, ISO/IEC 18000-3 mode 3, EPC Class-1 HF, JIS x 6319-4.
- Frequency: 13.56 MHz.
- Read/Write Range: Up to 5 cm.
Support:
- User Manual: Available.
- SDK: Available.
- Contact Us: For more information or inquiries.
Why Choose Us:
- Quality & Value: Leading RFID hardware manufacturer for over a decade, delivering high-quality products at competitive prices.
- Expertise & Innovation: Expert team providing advanced and tailored RFID solutions.
- Efficiency & Reliability: Reliable global shipping.
