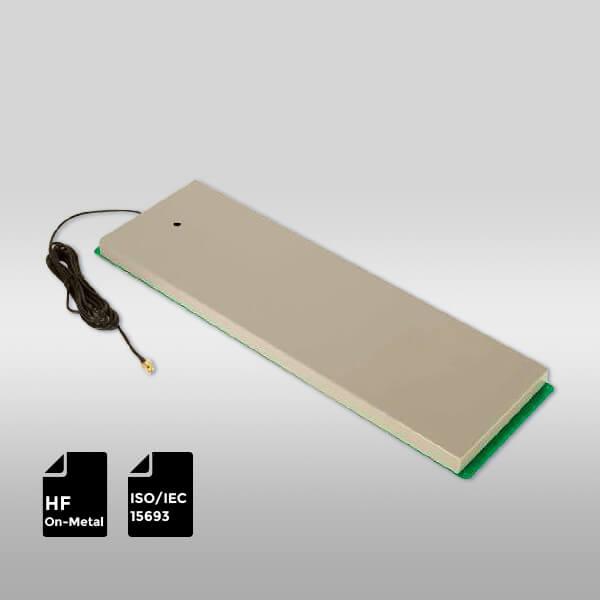

Product Overview:
- The embedded on-metal RFID antenna is specially designed for use in metal environments on production lines.
- It features an on-metal design, allowing installation and use in environments where five sides are metal without affecting its performance.
- The product is widely used in production automation, AGV transportation vehicles, and logistics sorting.
Features:
- Frequency Band: HF 13.56 MHz.
- Protocol: ISO 15693.
- Radio Frequency Interface: SMA.
Specifications:
Physical Specifications:
- Dimensions | Weight:
- 2602: 175L x 89W x 26.5H mm | 310g.
- 2603: 370L x 80W x 21.5H mm | 530g.
- 2606: 450L x 140W x 21.5H mm | 1410g.
- Shell Material: PCB & Sheet Metal.
- Cable Length: 2.5 meters.
- Radio Frequency Interface: SMA.
Performance:
- Operating Frequency: 13.56 MHz.
- Protocol: ISO 15693.
- Antenna Impedance: 50Ω.
- Maximum Supporting Power: 4W.
- Read Range (at 2W):
- 2602: 20 cm.
- 2603: 22 cm.
- 2606: 32 cm.
Compatible RFID Reader:
- High-power HF RFID reader with exceptional sensitivity for reading and writing.
- Features rapid anti-collision processing algorithms.
- Integrates various communication interfaces: Ethernet, USB, RS232, and RS485.
- Suitable for RFID integration projects with stringent read and write requirements.
- Widely used in jewelry management, chip management, production automation, and access control.
Compatible RFID Tags:
- ISO 15693 compliant.
- Options include RFID SLIX ABS and Nylon RFID Cable Tie Tag, RFID Silicone Wristband, and Contact Customer Service RFID SLIX Heat Press Interactive NFC+UHF Garment Badge.
