Product Overview
- Product Type: High-temperature RFID tag.
- Key Features: Suitable for extremely high-temperature working scenarios, capable of withstanding temperatures up to 260°C.
- Applications: Ideal for embedding in industrial equipment and outdoor equipment, such as automobile manufacturing, metal processing, and glass manufacturing equipment.
Frequency Band
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
Chip Type
- IC Type: U8.
International Standard
- Standard Compliance: ISO 18000-6C, EPC Class 1 Gen 2.
Memory Specifications
- EPC Memory: 128 bits.
- User Memory: 0 bits.
- TID Memory: 6 bits.
IP Rating
- IP Rating: IP68.
Maximum Read Range
- Max. Read Range: 3.5 meters.
Physical Specifications

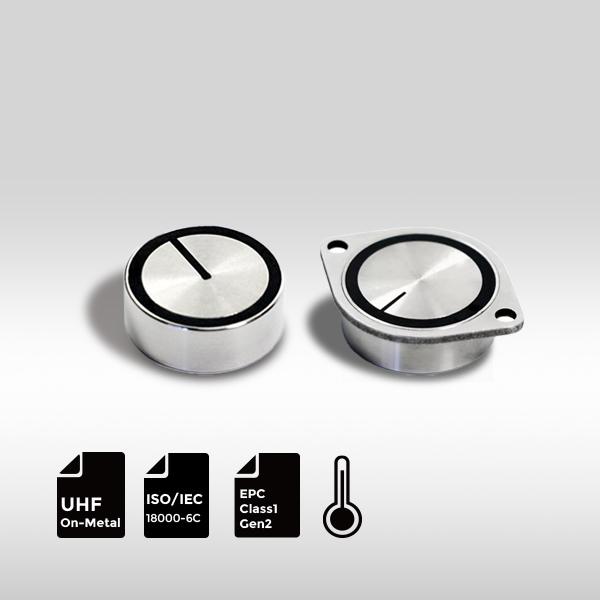

- Model Numbers: D30-1 | D30-2.
- Material: 304 Stainless Steel.
- Tag Size:
- D30 mm (D30-1)
- 45×34 mm (D30-2)
- Hole Diameter: 4 mm × 2.
- Mounting Methods: Screw | Welding.
- Tag Thickness: 11 mm.
- Tag Weight: 34 g.
- Tag Color: Gray.
Chip Characteristics
- Chip Manufacturer: .
- Chip Family: U8.
- Write Cycles: 100,000 typical cycles.
- Data Retention: Up to 50 years.
- EPC Memory: 128 bits.
- User Memory: 0 bits.
- TID Memory: 6 bits.
- Perma LOCK™: Supported.
- Kill Command: Supported.
- EAS Tag Alternative Function: Supported.
- Tag Performance Optimization: Supported.
- Autocorrect Memory Protection: Supported.
- Authenticity Certification: Supported.
Technical Parameters
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
- Communication Protocol: EPC Class 1 Gen 2, ISO 18000-6C.
- Applicable Surface: Metal Surfaces.
- Read Range:
- Fix Reader: 3.5 meters (for both 902-928 MHz and 865-868 MHz)
- Handheld Reader: 2.6 meters (for both 902-928 MHz and 865-868 MHz)
Additional Information
- Storage Environment: -50°C to +260°C, +300°C (100 hours).
- Operating Environment: -40°C to +150°C.
- Testing Limits:
- Withstand 300°C for 100 hours.
- Withstand 280°C for 1000 hours.
- Withstand 260°C for 2000 hours.
- Withstand -20°C for 8 hours, then 260°C for 16 hours/day, 80 days.
- Withstand from 150°C to -40°C, 7.5 cycles/day, 80 days, total of 600 cycles.
