Product Overview

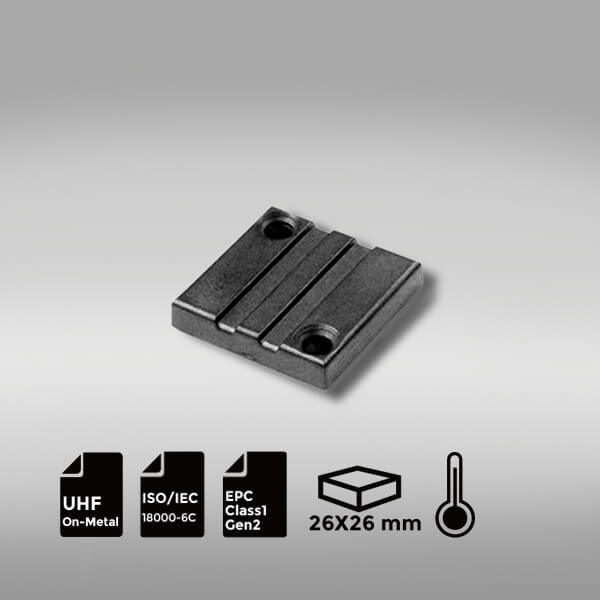

- Product Type: Square heat-resistant RFID tag.
- Key Features: Suitable for use in the petrochemical industry, capable of withstanding environments containing mineral oil, petroleum, salt mist, and vegetable oil.
- Applications: Ideal for applications in the petrochemical industry where exposure to harsh chemicals and high temperatures is common.
Frequency Band
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
Chip Type
- IC Type: U8.
International Standard
- Standard Compliance: ISO 18000-6C, EPC Class 1 Gen 2.
Memory Specifications
- EPC Memory: 128 bits.
- User Memory: 0 bits.
- TID Memory: 96 bits.
IP Rating
- IP Rating: IP68.
High-Temperature Resistance
- Temperature Resistance: Up to 100°C.
Physical Specifications
- Material: PPS Shell, PCB Antenna.
- Tag Size: 26×26 mm (Hole: Diameter 2 mm×2).
- Tag Thickness: 5.5 mm.
- Tag Weight: 6.6 g.
- Tag Color: Black.
- Mounting Methods: Adhesive, Screw, Binding.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service.
- Chip Family: U8.
- Write Cycles: 100,000 typical cycles.
- Data Retention: Up to 50 years.
- EPC Memory: 128 bits.
- User Memory: 0 bits.
- TID Memory: 96 bits.
- Perma LOCK™: Supported.
- Kill Command: Supported.
- EAS Tag Alternative Function: Supported.
- Tag Performance Optimization: Supported.
- Autocorrect Memory Protection: Supported.
- Authenticity Certification: Supported.
Technical Parameters
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
- Communication Protocol: EPC Class 1 Gen 2, ISO 18000-6C.
- Applicable Surface: Metal Surfaces.
Additional Information
- Storage Environment: -40°C to +100°C (+230°C for 30 minutes, +180°C for 120 minutes).
- Operating Environment: -40°C to +100°C.
- Withstands Environment: Fuel B, mineral oil, petroleum, salt mist, vegetable oil.
