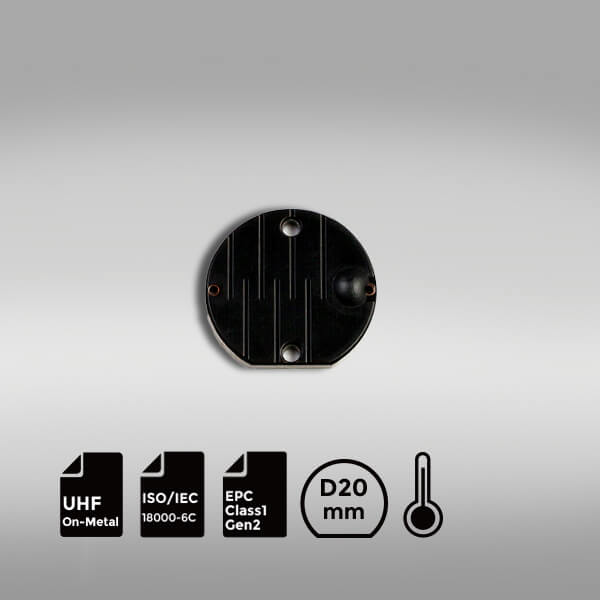

Product Overview
- Ideal for Industrial Use: The round heat-resistant RFID tag is designed for special industrial working scenarios, such as automotive manufacturing, metal processing, glass manufacturing, and outdoor infrastructure.
- High-Temperature Resistance: Capable of withstanding extreme temperatures up to 180°C for 10 hours, making it suitable for harsh industrial environments.
- Robust Durability: IP68-rated for dust and water resistance, ensuring reliability in challenging conditions.
RFID Technical Specifications
- Frequency Band:
- EU: 865-868 MHz
- US: 902-928 MHz
- Chip Type: Alien H4
- International Standard: ISO 18000-6C, EPC Class 1 Gen 2
- Memory:
- EPC Memory: 128 Bits
- User Memory: 128 Bits
- TID Memory: 48 Bits
- Write Cycles: 100,000 (typical)
- Data Retention: Up to 50 years
- Authentication Technology: Supports Dynamic Authentication™ for anti-counterfeit measures.
- Programming:
- Quick Write™ High-Speed Chip: Supported
- Blast Write™ Mass Programming: Supported
Physical Specifications
- Material: High-temperature material
- Tag Size:
- Diameter: 20 mm
- Hole: Diameter 2 mm × 2
- Tag Thickness:
- 2.1 mm without IC bump
- 2.8 mm with IC bump
- Tag Weight: 1 g
- Tag Color: Black
- Mounting Methods: Adhesive, Screw
Technical Parameters
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
- Communication Protocol: EPC Class 1 Gen 2, ISO 18000-6C
- Applicable Surface: Metal Surfaces
- Read Range:
- Fixed Reader:
- EU (865-868 MHz): 2.7 m
- US (902-928 MHz): 2.5 m
- Handheld Reader:
- EU (865-868 MHz): 1.4 m
- US (902-928 MHz): 1.2 m
Environmental Specifications
- Storage Environment: -55°C to +200°C (+280°C for 50 minutes, +250°C for 150 minutes)
- Operating Environment: -40°C to +150°C (working 10 hours in 180°C)
