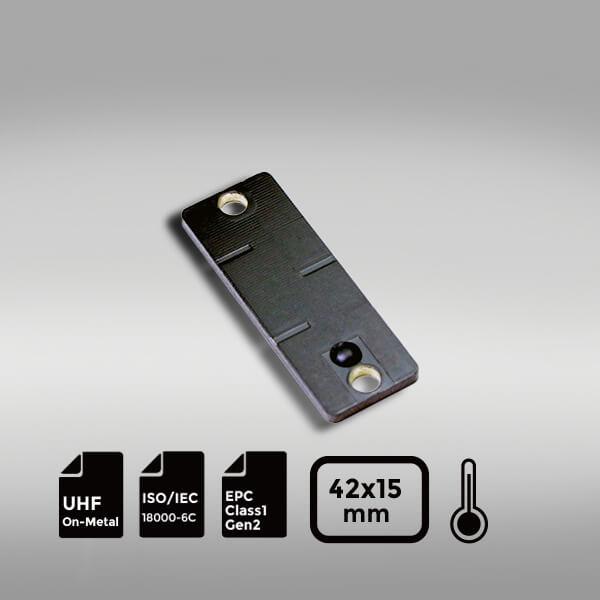

Product Overview
- Robust and Versatile: The heat-resistant UHF on-metal tag is designed for reliable performance in harsh environments.
- Heat-Resistant Material: Constructed with robust heat-resistant material and IP68 compliance, ensuring durability.
- Versatile Applications: Equipped with the Alien H4 chip, it supports various applications including asset tracking, inventory management, and supply chain optimization.
RFID Technical Specifications
- Frequency Band:
- EU: 865-868 MHz
- US: 902-928 MHz
- Chip Type: Alien H4
- International Standard: ISO 18000-6C, EPC Class 1 Gen 2
- Memory:
- User Memory: 128 Bits
- EPC Memory: 128 Bits
- TID Memory: 64 Bits
- Write Cycles: 100,000 (typical)
- Data Retention: Up to 50 years
- Quick Write™: Yes
- Blast Write™: Yes
Physical Specifications
- Material: Heat-resistant material
- Tag Size: 42×15 mm (Hole: Diameter 4 mm × 2)
- Tag Thickness:
- 2.1 mm without IC bump
- 2.8 mm with IC bump
- Tag Weight: 3.5 g
- Tag Color: Black
- IP Rating: IP68
- Mounting Methods: Adhesive, Screw
Technical Parameters
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
- Communication Protocol: EPC Class 1 Gen 2, ISO 18000-6C
- Applicable Surface: Metal Surfaces
- Read Range:
- Fixed Reader:
- EU (865-868 MHz): 7 m on metal, 3.5 m off metal
- US (902-928 MHz): 6.8 m on metal, 4 m off metal
- Handheld Reader:
- EU (865-868 MHz): 5.5 m on metal, 2.2 m off metal
- US (902-928 MHz): 5.3 m on metal, 2.7 m off metal
Environmental Specifications
- Storage Environment: -55°C to +200°C (+280°C for 50 minutes, +250°C for 150 minutes)
- Operating Environment: -40°C to +150°C (working 10 hours in 180°C)
