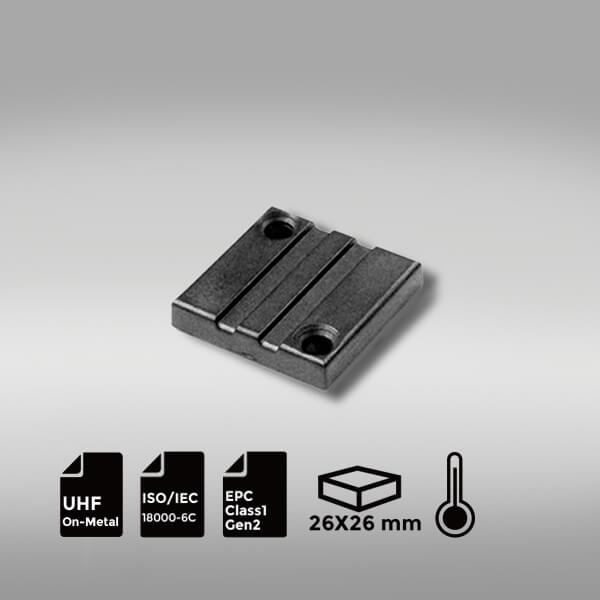

Product Overview
- Industry-Specific Use: This square heat-resistant RFID tag is designed for use in the petrochemical industry, suitable for environments containing mineral oil, petroleum, salt mist, and vegetable oil.
- Robust Construction: Made from PPS shell and PCB antenna, ensuring durability and reliability in harsh conditions.
- High-Temperature Resistance: Capable of withstanding temperatures up to 100°C, with brief exposure to higher temperatures.
RFID Technical Specifications
- Frequency Band:
- EU: 865-868 MHz
- US: 902-928 MHz
- Chip Type: Alien H3
- International Standard: ISO 18000-6C, EPC Class 1 Gen 2
- Memory:
- EPC Memory: 480 Bits
- User Memory: 512 Bits
- TID Memory: 64 Bits
- Write Cycles: 100,000 (typical)
- Data Retention: Up to 50 years
- Dynamic Authentication™ Protection: Supported
- Permanently Lock User Memory: Supported
- Mandatory and Optional Command Adaptation: Supported
Physical Specifications
- Material: PPS Shell, PCB Antenna
- Tag Size: 26×26 mm (Hole: Diameter 2 mm × 2)
- Tag Thickness: 5.5 mm
- Tag Weight: 6.6 g
- Tag Color: Black
- IP Rating: IP68
- Mounting Methods: Adhesive, Screw, Binding
Technical Parameters
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
- Communication Protocol: EPC Class 1 Gen 2, ISO 18000-6C
- Applicable Surface: Metal Surfaces
- Read Range:
- Fixed Reader:
- EU (865-868 MHz): 2.5 m on metal, 1.2 m off metal
- US (902-928 MHz): 2.6 m on metal, 1.3 m off metal
- Handheld Reader:
- EU (865-868 MHz): 1.5 m on metal, 0.9 m off metal
- US (902-928 MHz): 1.9 m on metal, 1.0 m off metal
Environmental Specifications
- Storage Environment: -40°C to +100°C (+230°C for 30 minutes, +180°C for 120 minutes)
- Operating Environment: -40°C to +100°C
- Withstands Environment: Fuel B, mineral oil, petroleum, salt mist, vegetable oil
