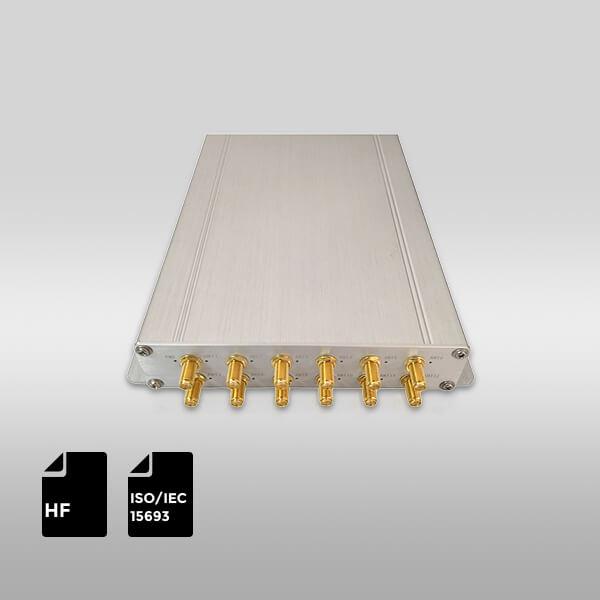

High-Power HF RFID Reader:
- Exceptional Sensitivity: Delivers high-performance reading and writing capabilities.
- Rapid Anti-Collision Processing: Ensures efficient handling of large quantities of densely packed RFID tags.
- Multiple Communication Interfaces: Integrated Ethernet, USB, RS232, and RS485 for versatile connectivity.
- Stable Performance: Ideal for RFID integration projects with stringent read and write requirements.
- Long-Distance Reading: Excels in scenarios requiring extended read ranges.
- Wide Application: Used in jewelry management, chip management, production automation, and access control.
Features:
- Frequency Band: HF 13.56 MHz.
- Protocol: ISO 15693.
- Reading Speed: 70 tags per second.
Specifications:
Physical Specifications:
- Dimensions: 216×183×32 mm.
- Weight: 1135 g.
- Material: Aluminum Alloy.
RF Specifications:
- Supported Protocols: ISO/IEC 15693, ISO/IEC 18000-3.
- Operating Frequency: 13.56 MHz.
- Antenna Interface: Up to SMA×12.
- RF Power: 1-8W.
- Working Voltage: DC 12V.
- Max Power Consumption: ≤18W.
- GPIO: 1 Relay / 1 MOS.
- Communication Interface: RS232 / RS485 and Ethernet.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Antennas to Work With:
- ISO 15693 Compliant HF On-Metal RFID Antenna
- ISO 15693 Smart Tray HF RFID Antenna
- ISO 15693 HF Embedded On-Metal RFID Antenna
Available RFID Readers:
- Frequency Band: HF 13.56 MHz.
- Protocol: ISO 15693.
- Reading Speed: 70 pcs/sec.
- Physical Specifications: Dimensions: 216×183×32 mm, Weight: 1135 g, Material: Aluminum Alloy.
- RF Specifications: Supports ISO/IEC 15693 and ISO/IEC 18000-3, Operating Frequency: 13.56 MHz, Antenna Interface: up to SMA×12, RF Power: 1-8W, Working Voltage: DC 12V, Max Power Consumption: ≤18W, GPIO: 1 Relay / 1 MOS, Communication Interface: RS232 / RS485 and Ethernet.
