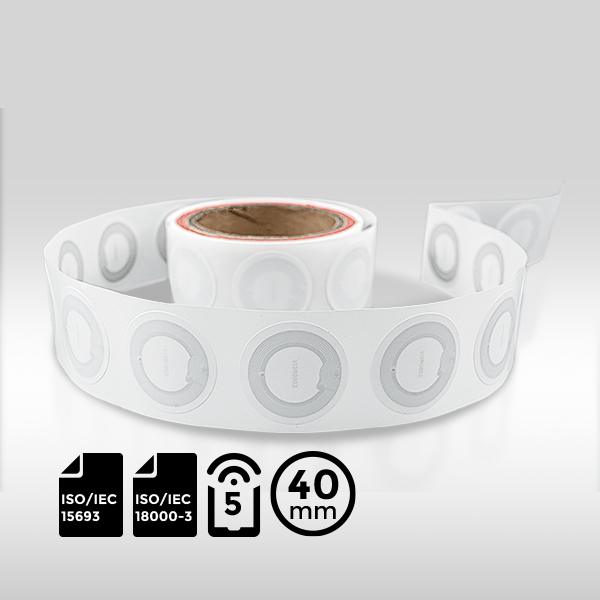

CD Type RFID Label ⌀40mm RFID mifare Slix | ISO15693 NFC type 5

CD Type RFID Label ⌀40mm RFID Slix | ISO15693 NFC type 5

Professional RFID NFC manufacturing service:

– MOQ: 1000pcs

– OEM/ODM service offered

– Accept customization (specifications, color, design, etc.)

– Lead Time: 7~14 Working days

According to your personalized Ebike designs, or our original designs. Fully customized design, fabric, and pole material, color, size, weight, printed logo, and packaging.

Category: HF Tag

Description

Product Overview

Experience seamless CD management in libraries with our CD Type RFID Label featuring RFID SLIX technology.
Designed to ISO15693 and NFC Type 5 standards.
Outer diameter of ⌀40mm and inner diameter of ⌀16mm, perfectly fitting CDs.
Optimizes inventory tracking and enables quick, efficient check-outs.

Features

Frequency Band: HF 13.56 MHz.
Chip Type: RFID SLIX.
International Standard: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
User Memory: 896 bits.
Read Range: Up to 1.5 meters.
Certificate: WEEE compliant.

Technical Parameters

Operating Frequency: HF 13.56 MHz.
Communication Protocol: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
Read Range: Up to 1.5 meters.
Capacitance: 23.5 pF.
Operating Mode: Passive.

Chip Characteristics

Manufacturer: Contact Customer Service.
Chip Type: RFID SLIX.
User Memory: 896 bits.
TID Memory: 64 bits.
Reading Rate: 53 Kbit/s.
High Data Integrity: 16-bit CRC.
Lock Mechanism: EAS, AFI, DSFID.
Write Endurance: 100,000 cycles.
Data Retention: 50 years.

Physical Specifications

Material: Coated Paper.
Size: Diameter 40mm-. Antenna Size: Diameter 34mm.
Substrate: PET.

Operating Environment

Label Attachment:
- Temperature: 10°C to 40°C.
- Humidity: 20% to 80% RH.
After Label Attached:
- Temperature: -20°C to 50°C.
- Humidity: 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.

Handling Precautions

Do not bend.
Keep away from water and collision.

Packaging

Packing Format: In roll, vacuumed packing in ESD bag.
Roll OD: Maximum 180 mm.
Core ID: 3 inches (76.2 ± 0.5 mm).
Packing Quantity: 1000 pieces per roll (0.518 kg per roll).

RFID SLIX Family Comparison

RFID SLIX:
- User Memory: 896 bits.
- EEPROM: 1024 bits (32 blocks of 4 bytes each).
- Does not support EAS selection or memory protection.
RFID SLIX 2:
- User Memory: 2528 bits.
- EEPROM: 2560 bits (80 blocks of 4 bytes each).
- Supports EAS and AFI protection with 32-bit passwords.
RFID SLIX-L:
- User Memory: 256 bits.
- EEPROM: 512 bits (16 blocks of 4 bytes each).
- Supports EAS and AFI protection with 32-bit passwords.
RFID SLIX-S:
- User Memory: 1280 bits.
- EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each).
- Supports EAS and AFI protection with 32-bit passwords.
