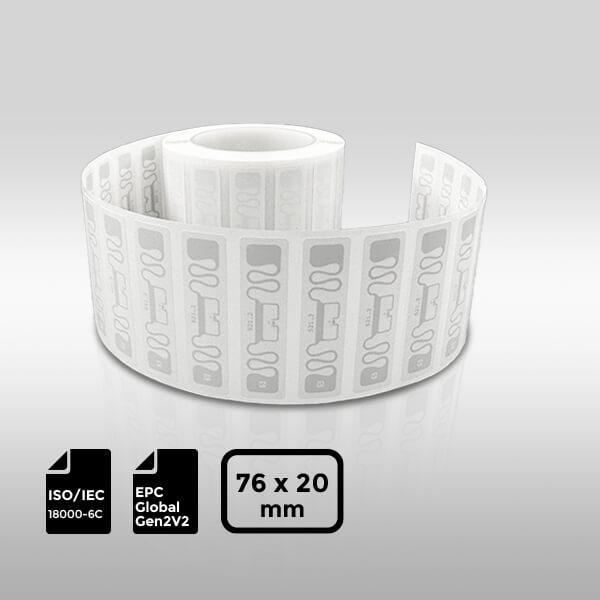

ARC Certified Belt U9 Coated Paper RFID Label

Product Overview

• Retailers can use this ARC-certified RFID label to efficiently record apparel merchandise information.
• It effectively prevents brand counterfeiting.
• The embedded RFID chip can be identified by RFID readers, with data transmitted to the back-end system for analysis and storage.
• The label complies with EPC Global Gen 2v2 and ISO/IEC 18000-6C international communication standards.
• It is designed for apparel, retail, and industrial applications, including supply chain management, home essentials, and brand protection.
• Merchandise using this ARC-certified label can be successfully sold in Walmart.

Features

• Frequency Band: UHF 860-960 MHz.
• Chip Type: U9.
• International Standards: ISO/IEC 18000-6C, EPC Global Gen2v2.1.
• EPC Memory: 96 bits.
• TID Memory: 48 bits.
• Max Read Range (2W ERP FCC): 11 meters.

Technical Parameters

• Operating Frequency: 860-960 MHz.
• Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2.1.
• Read Range:
  • Up to 17.5 meters (ETSI standard).
  • Up to 11 meters (FCC standard).
• ESD Voltage Immunity: Maximum 2000V.
• Operating Mode: Passive.

Chip Characteristics

• Manufacturer: Contact Customer Service.
• Chip Type: U9.
• Data Retention: 20 years.
• EPC Memory: 96 bits.
• User Memory: 0 bits.
• TID Memory: 48 bits.
• Reserved Memory:
  • Access Password (0 bit).
  • Kill Password (32 bits).
• Write Endurance: 100,000 cycles.
• Read/Write Sensitivity:
  • -16.5 dBm (ETSI standard).
  • -7.5 dBm (FCC standard).

Physical Specifications

• Material: Coated paper.
• Size: 76×20 mm.
• Antenna Size: 70×14 mm.

Operating Environment

• Label Attachment:
  • Temperature: 10°C to 40°C.
  • Humidity: 20% to 80% RH.
• After Label Attached:
  • Temperature: -20°C to 50°C.
  • Humidity: 20% to 80% RH.
• Storage Environment:
  • Temperature: 18°C to 28°C.
  • Humidity: 40% to 60% RH.

Handling Precautions

1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are defective and should not be used.

Packaging

• Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
• Roll OD Size: Maximum 120 mm.
• Core Size: 3 inches (76 mm).
• Packing Quantity: 1000 pieces per roll.
