Product Overview
- Retailers can use this ARC-certified RFID label to efficiently record clothing item information and prevent brand counterfeiting.
- The label is embedded with an RFID chip that can be identified by an RFID reader.
- Data inside the chip is transmitted to the back-end system for analysis and storage.
- The label complies with international communication standards: EPC Global Gen 2v2 and ISO/IEC 18000-6C.
- It is designed for the apparel, retail, and logistics industries and is widely used in supply chain management, essential furniture, and brand protection.
- Products using this ARC-certified label can be successfully sold at Walmart.
Features
- Frequency Band: UHF 860-960 MHz.
- Chip Type: U9.
- International Standards: ISO/IEC 18000-6C, EPC Global Gen2v2.1.
- EPC Memory: 96 bits.
- TID Memory: 48 bits.
- Max Read Range (2W ERP FCC): 16 meters.
Technical Parameters
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2.1.
- Read Range:
- Up to 18 meters (ETSI standard).
- Up to 16 meters (FCC standard).
- ESD Voltage Immunity: Maximum 2000V.
- Operating Mode: Passive.
Chip Characteristics
- Manufacturer: Contact Customer Service.
- Chip Type: U9.
- Data Retention: 20 years.
- EPC Memory: 96 bits.
- User Memory: 0 bits.
- TID Memory: 48 bits.
- Reserved Memory:
- Access Password (0 bits).
- Kill Password (32 bits).
- Write Endurance: 100,000 cycles.
- Read/Write Sensitivity:
- -16 dBm (ETSI standard).
- -15 dBm (FCC standard).

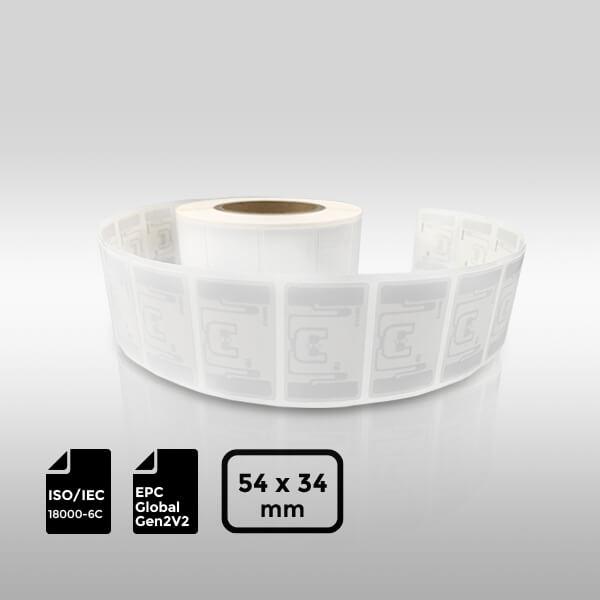

Physical Specifications
- Material: Coated paper.
- Size: 54×34 mm.
- Antenna Size: 50×30 mm.
Operating Environment
- Label Attachment:
- Temperature: 10°C to 40°C.
- Humidity: 20% to 80% RH.
- After Label Attached:
- Temperature: -20°C to 50°C.
- Humidity: 20% to 80% RH.
- Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions
- Do not bend.
- Keep away from water and collision.
- Labels with black-dot marks are defective and should not be used.
Packaging
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD Size: Maximum 140 mm.
- Core Size: 3 inches (76 mm).
- Packing Quantity: 1000 pieces per roll.
Additional Information
- Product Datasheet: U9 Datasheet.
- Applications: Apparel, retail, logistics, supply chain management, brand protection.
