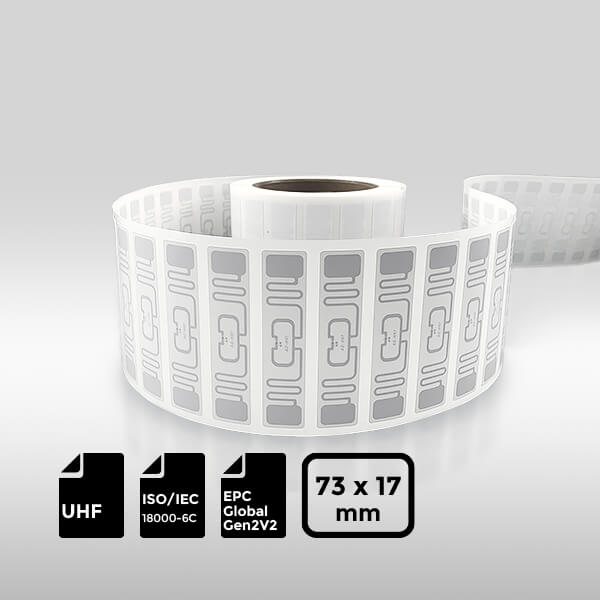

Product Overview
- ARC certified RFID label suitable for clothing retail, supply chain management, and brand protection.
- Fully conforms to ISO/IEC 18000-6C and EPC Global Gen2v2 standards.
- Inlays have passed ARC certification standards tests.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U9
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
- EPC Memory: 96 bits
- TID Memory: 48 bits
- Max. Reading Range (2W ERP FCC): 21 meters
Specifications
Physical Specifications
- Material: Coated Paper
- Size: 73×17 mm
- Antenna Size: 70×14 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
- Read Range:
- Up to 22 meters (ETSI standard)
- Up to 21 meters (FCC standard)
- ESD Voltage Immunity: Max 2000V
- Operating Mode: Passive
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U9
- Data Retention: 20 years
- EPC Memory: 96 bits
- User Memory: 0 bits
- TID Memory: 48 bits
- Reserved Memory:
- Access Password (0 bit)
- Kill Password (32 bits)
- Write Endurance: 100,000 times
- Read/Write Sensitivity:
- -22 dBm (ETSI standard)
- -22 dBm (FCC standard)
Additional Information
- Operating Environment:
- Label Attach: 10°C~40°C, 20%~80% RH
- After Label Attached: -20°C~50°C, 20%~80% RH
- Storage Environment:
- Temperature: 18°C~28°C
- Humidity: 40%~60% RH
- Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective; do not use.
Packaging
- Packing Format: Packed in roll, vacuumed packing in ESD bag
- Roll OD Size: Max. 230 mm
- Core Size: 3 inches (76.2 mm)
- Packing Quantity: 6000±100 Pcs/roll
- Carton Dimension: 255×255×380 mm
