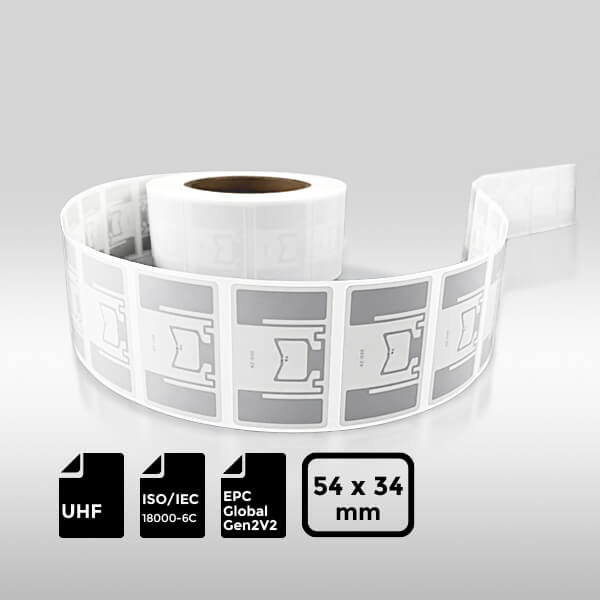

Product Overview
- The ARC-certified RFID label is available to Walmart merchants.
- Designed for recording apparel and Contact Customer Service item-level retail information, supply management, and brand protection against counterfeiting.
- The RFID chip is embedded in the label, and the data is detected by the RFID reader and transmitted to the system for control of the required information.
- Compatible with EPC Class1 Gen2 and ISO/IEC 18000-6C international standard protocols.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U9
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
- EPC Memory: 96 bits
- User Memory: 32/64 bits
- Max. Reading Range (2W ERP ETSI): 24 meters
Specifications
Physical Specifications
- Material: Coated Paper
- Size: 54×34 mm
- Antenna Size: 50×30 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO 18000-6C, EPC Global Gen2v2
- Read Range:
- 865-868 MHz (EU): Up to 17 meters
- 902-928 MHz (US): Up to 20 meters
- ESD Voltage Immunity: Max 2000V
- Operating Mode: Passive
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U9
- Data Retention: 20 years
- EPC Memory: 96 bits
- User Memory: 0 bits
- TID Memory: 48 bits
- Reserved Memory:
- Access Password (0 bits)
- Kill Password (32 bits)
- Write Endurance: 100,000 times
- Read/Write Sensitivity:
- -23 dBm (ETSI standard)
- -22 dBm (FCC standard)
Additional Information
- Operating Environment:
- Label Attach: 10°C~40°C, 20%~80% RH
- After Label Attached: -20°C~50°C, 20%~80% RH
- Storage Environment:
- Temperature: 18°C~28°C
- Humidity: 40%~60% RH
- Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective; do not use.
Packaging
- Packing Format: Packed in roll, vacuumed packing in ESD bag
- Roll OD Size: Max. 230 mm
- Core Size: 3 inches (76.2 mm)
- Packing Quantity: 3500±100 Pcs/roll
- Carton Dimension: 255×255×300 mm
