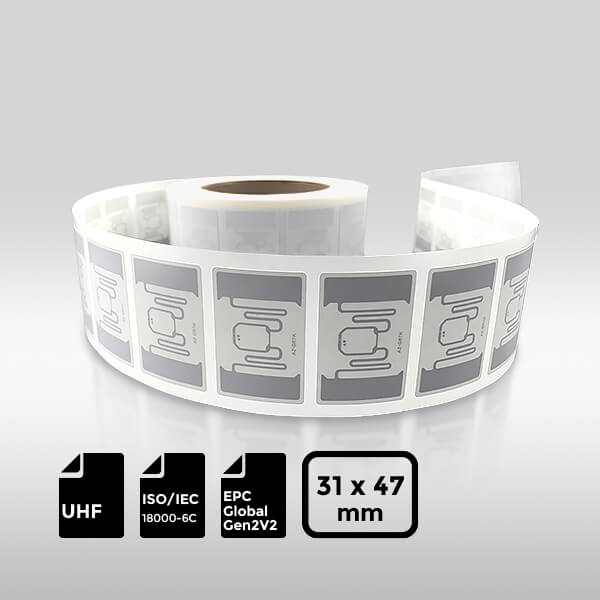

ARC Certified RFID®M730 Coated Paper RFID Label 47x31mm

Product Overview

• ARC Certified RFID Label: Suitable for clothing retail, supply chain management, and brand protection.
• Fully conforms to ISO/IEC 18000-6C and EPC Global Gen2v2 standards.
• Inlays have passed ARC certification standards tests.

Features

• Frequency Band: UHF 860-960 MHz
• Chip Type: Contact Customer Service M730
• International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
• TID Memory: 48-bit
• EPC Memory: 128-bit
• User Memory: 0-bit

Specifications

Physical Specifications

• Material: Coated Paper
• Size: 31×47 mm
• Antenna Size: 28×44 mm

Technical Parameters

• Operating Frequency: UHF 860-960 MHz
• Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
• Read Range: Up to 15 meters
• ESD Voltage Immunity: Max 2000V
• Operating Mode: Passive

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: Contact Customer Service M730
• EPC Memory: 128 bits
• User Memory: 0 bits
• TID Memory: 48 bits
• Access & Kill Password: Shared 32 bits
• Write Endurance: 10,000 cycles
• Read/Write Sensitivity:
  • -20 dBm (ETSI standard)
  • -22 dBm (FCC standard)

Additional Information

• Operating Environment:
  • Label Attach: 10°C~40°C, Humidity 20%-80%
  • After Label Attached: -20°C~50°C, Humidity 20%~80%
• Storage Environment:
  • Temperature: 18°C~28°C
  • Humidity: 40%~60% RH
• Handling Precautions:
  1. Do not bend.
  2. Keep away from water and collision.
  3. Inlays with black-dot marks are defective; do not use.

Packaging

• Packing Format: Packed in roll, vacuumed packing in ESD bag
• Roll OD Size: Max. 230 mm
• Core Size: 3 inches (76.2 mm)
• Packing Quantity: 3800 pcs/roll, 4 rolls/carton
• Carton Dimension: 255×255×300 mm
