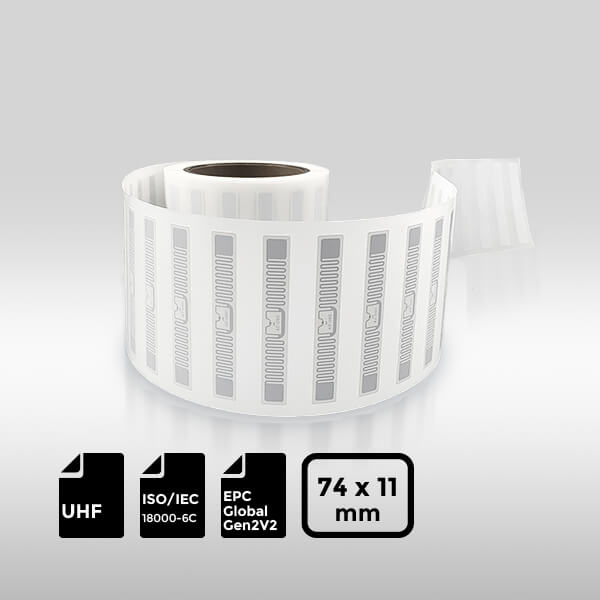

ARC-Certified RFID Label for Walmart Merchants:
- Purpose: Designed for supply chain management and brand protection against counterfeiting.
- Functionality: The embedded RFID chip stores data that is detected by RFID readers and transmitted to a system for information control.
- Compatibility: Supports EPC Global Gen2v2 and ISO/IEC 18000-6C international standard protocols.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: R6-P.
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2.
- EPC Memory: 128/96 bits.
- User Memory: 32/64 bits.
- Max. Reading Range: 13 meters (ETSI standard), 15 meters (FCC standard).
Specifications:
Physical Specifications:
- Material: Coated Paper.
- Size: 74×11 mm.
- Antenna Size: 71×8 mm.
Technical Parameters:
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO 18000-6C, EPC Global Gen2v2.
- Read Range: Up to 13 meters (ETSI standard), up to 15 meters (FCC standard).
- ESD Voltage Immunity: Max 2000V.
- Operating Mode: Passive.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: R6-P.
- Data Retention: 50 years.
- EPC Memory: 128/96 bits (Read & Write).
- User Memory: 32/64 bits.
- TID Memory: 48 bits.
- Reserved Memory:
- Access Password (32 bits).
- Kill Password (32 bits).
- Write Endurance: 100,000 times.
- Read/Write Sensitivity:
- -18 dBm (ETSI standard).
- -20 dBm (FCC standard).
Additional Information:
Operating Environment:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective and should not be used.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD Size: Max. 230 mm.
- Core Size: 3 inches (76.2 mm).
- Packing Quantity: 6000 ± 100 pcs/roll.
- Carton Dimension: 255×255×300 mm.
