Features:
- Applications: Suitable for clothing retail, supply chain management, and brand protection.
- Standard Compliance: Fully conforms to ISO/IEC 18000-6C and EPC Global Gen2v2 standards.
- ARC Certification: Inlays have passed ARC certification standards tests.
Frequency Band:
- UHF 860-960 MHz.
Chip Type:
- Contact Customer Service M730.
International Standard:
- ISO/IEC 18000-6C, EPC Global Gen2v2.
EPC Memory:
- 128 bits.
Maximum Reading Range:
- 13.5 meters (2W ERP, FCC).
- 17.5 meters (2W ERP, ETSI).
Specifications:
Physical Specifications:
- Material: Coated paper.

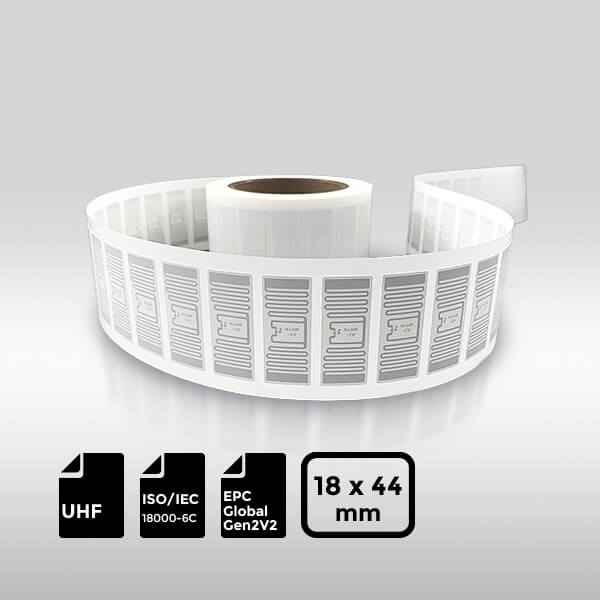

- Size: 18×44 mm.
- Antenna Size: 16×42 mm.
Technical Parameters:
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2.
- Read Range:
- 865-868 MHz (EU): Up to 17.5 meters.
- 902-928 MHz (US): Up to 13.5 meters.
- ESD Voltage Immunity: Max 2000V.
- Operating Mode: Passive.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: Contact Customer Service M730.
- EPC Memory: 128 bits.
- User Memory: 0 bits.
- TID Memory: 48 bits.
- Access & Kill Password: Shared 32 bits.
- Write Endurance: 10,000 cycles.
- Read/Write Sensitivity:
- -20 dBm (ETSI standard).
- -18 dBm (FCC standard).
Additional Information:
Operating Environment:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
Storage Environment:
- 18°C to 28°C, 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective and should not be used.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD Size: Max. 230 mm.
- Core Size: 3 inches / 76.2 mm.
- Packing Quantity: 6000 pcs/roll, 4 rolls/carton.
- Carton Dimension: 255×255×300 mm.
