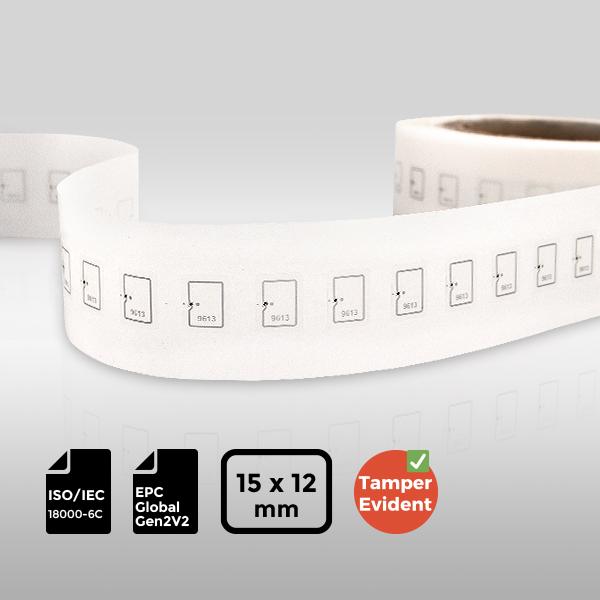

Alien H EC RFID Wet Inlay:
- Advanced Chip: Incorporates the Alien H EC chip for high-precision reading.
- Standard Compliance: Meets EPC Global Gen2v2 and ISO/IEC 18000-6C standards.
- Stable Performance: Ensures reliable tag reading in various environments.
- Efficient Tracking: Supports efficient tracking and management solutions.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: Alien H EC.
- International Standard: ISO/IEC 18000-6C, EPC Global Gen 2.
- User Memory: 128 bits.
- EPC Memory: 128 bits.
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: PET.
- Size: 15×12 mm.
- Antenna Size: 12×9 mm.
- Antenna Etching Mode: Aluminum etching (9µm).
Technical Parameters:
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2.
- Read Range: Up to 13 meters.
- IC ESD Voltage Immunity: 2000 V (HBM).
- Operating Mode: Passive.
Chip Characteristics:
- Chip Manufacturer: Alien.
- Chip Type: Alien H EC.
- Data Retention: 50 years.
- User Memory: 128 bits.
- EPC Memory: 128 bits.
- TID Memory: 48 bits.
- Write Endurance: 200,000 cycles.
- Read Sensitivity: -20 dBm.
- Write Sensitivity: -17 dBm.
- QuickWrite™ High-speed Chip: Supported.
- BlastWrite™ Mass Programming: Supported.
- Dynamic Authentication™ Anti-cloning/Anti-counterfeit: Supported.
Additional Information:
Operating Limits:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
Storage Limits:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective and should not be used.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 7.28 inches (185 mm).
- Core ID: 3 inches (76.2 mm).
- Packing Quantity: 1000 pcs/roll (0.1375 kg/roll).
