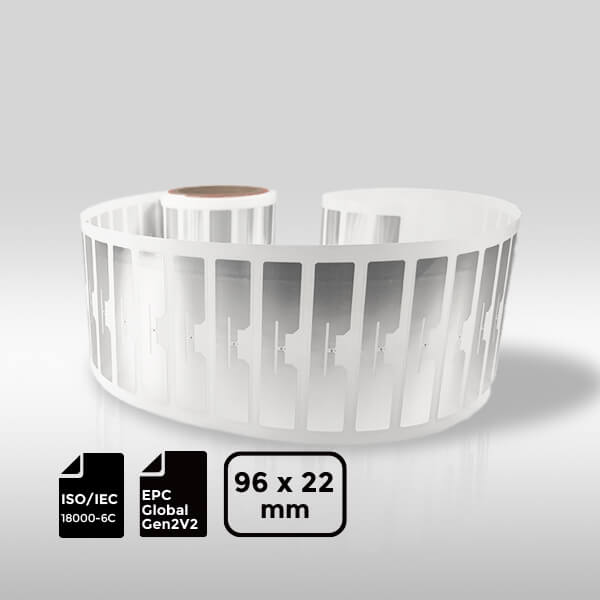

Alien H EC RFID Label:
- Compliance: Meets ISO/IEC 18000-6C and EPC Global Gen2v2 standards.
- Chip: Alien H EC, offering high memory capacity.
- Applications: Ideal for supply chain management, asset tracking, and inventory control.
- Data Protection: Minimizes data loss or corruption with robust memory management.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: Alien H EC.
- International Standard: ISO/IEC 18000-6C, EPC Global Gen 2v2.
- User Memory: 128 bits.
- EPC Memory: 128 bits.
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: BoPP.
- Size: 96×22 mm.
- Antenna Size: 93×19 mm.
Technical Parameters:
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2.
- Read Range: Up to 13 cm.
- ESD Voltage Immunity: 2000V.
- Operating Mode: Passive.
Chip Characteristics:
- Chip Manufacturer: Alien Higgs.
- Chip Type: Alien H EC.
- Data Retention: 50 years.
- User Memory: 128 bits.
- EPC Memory: 96 bits.
- TID Memory: 48 bits.
- Access & Kill Password: 32 bits.
- Write Endurance: 200,000 cycles.
- Read Sensitivity: -22.5 dBm.
- Write Sensitivity: -19 dBm.
Additional Information:
Operating Environment:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Keep away from water and collision.
- Do not bend.
Packaging:
- Packing Format: In rolls, packed in ESD bags.
- Roll OD: Max. 165 mm.
- Core ID: 3 inches (76.2 ± 0.50 mm).
- Packing Quantity: 5000 ± 2 pcs/roll.
