Alien H 3 RFID Self-adhesive Label

Professional RFID NFC manufacturing service:

– MOQ: 1000pcs

– OEM/ODM service offered

– Accept customization (specifications, color, design, etc.)

– Lead Time: 7~14 Working days

According to your personalized Ebike designs, or our original designs. Fully customized design, fabric, and pole material, color, size, weight, printed logo, and packaging.

Category: UHF Tag

Description

Product Overview

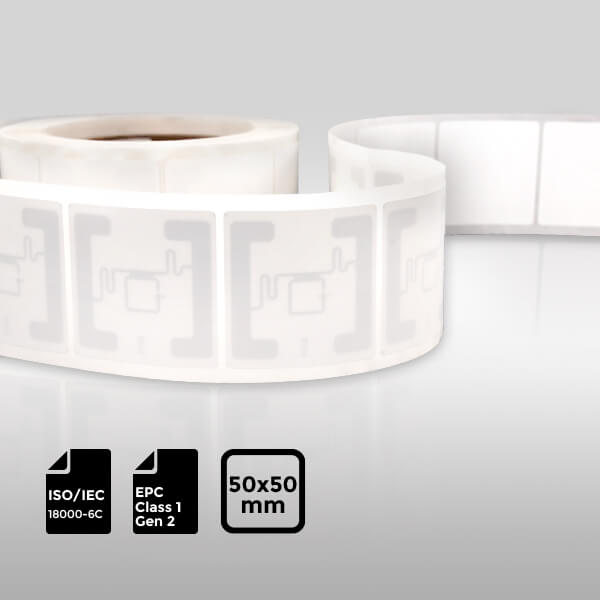

The Alien H3 RFID self-adhesive label is embedded with the advanced Alien H3 chip.
Ensures high-precision reading and compliance with EPC Class 1 Gen 2 and ISO/IEC 18000-6C standards.
Provides stable reading capability in various environments.
Offers efficient tracking and management solutions.

Features

Frequency Band: UHF 860-960 MHz.
Chip Type: Alien H3.
International Standards: ISO/IEC 18000-6C, EPC Class 1 Gen 2.
User Memory: 512 bits.
EPC Memory: 96-480 bits.
Certificate: WEEE compliant.

Technical Parameters

Operating Frequency: 860-960 MHz.
Communication Protocol: ISO/IEC 18000-6C, EPC Class 1 Gen 2.
Antenna Etching Mode: Aluminum etching (9µm).
IC ESD Voltage Immunity: 2000V (HBM).
Operating Mode: Passive.
Read Range: Up to 10 meters.

Chip Characteristics

Manufacturer: Alien.
Chip Type: H3.
Data Retention: 50 years.
User Memory: 512 bits (read & write).
EPC Memory: 96-480 bits (read & write).
Nonvolatile Memory: 800 bits.
Unique TID: 64 bits (read-only).
Reserved Memory:
- Access password: 32 bits (read & write).
- Kill password: 32 bits (read & write).
Read Sensitivity: -18 dBm.
Write Sensitivity: -13.5 dBm.
Write Endurance: 100,000 cycles.

Physical Specifications

Material: PP Synthetic Paper.
Label Size: 50×50 mm.
Inlay Size: 46×44 mm.

Operating Environment

Operating Temperature: -40°C to 70°C.
Operating Humidity: 20% to 90% RH.
Storage Temperature: 18°C to 28°C.
Storage Humidity: 40% to 60% RH.

Handling Precautions

Keep away from water, violent bumps, and squeezing.
Inlays with black ink dots are defective and should not be used.

Packaging

Packing Format: In roll, packed in ESD bag.
Roll OD: Maximum 185 mm.
Core ID: 3 inches (76.2 ± 0.50 mm).
Packing Quantity: 1000±10 pieces per roll, 4 rolls per carton.

Additional Information

Product Datasheet: Alien H3 datasheet.
Applications: Suitable for various tracking and management solutions, including logistics, inventory management, and asset tracking.
