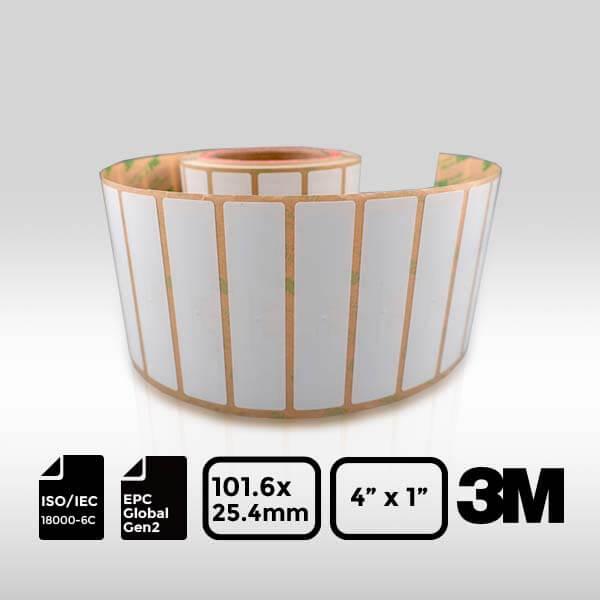

Alien H 3 Coated Paper + 3M Adhesive UHF RFID Label 4¨×1¨ | 101.6×25.4 mm

Professional RFID NFC manufacturing service:

– MOQ: 1000pcs

– OEM/ODM service offered

– Accept customization (specifications, color, design, etc.)

– Lead Time: 7~14 Working days

According to your personalized Ebike designs, or our original designs. Fully customized design, fabric, and pole material, color, size, weight, printed logo, and packaging.

Category: UHF Tag

Description

Product Overview

Experience superior tracking performance with our UHF RFID Label.
Powered by the cutting-edge Alien H3 chip.
Renowned for its high data rate and exceptional read sensitivity.
Supports dynamic authentication and strong memory protection.
ISO18000-6C compliant, enhancing RF performance for seamless asset tracking.

Features

Frequency Band: UHF 860-960 MHz.
Chip Type: Alien H3.
International Standards: ISO/IEC 18000-6C, EPC Global Gen 2.
User Memory: Up to 512 bits.
EPC Memory: 96-480 bits.
Read Range: Up to 10 meters.

Technical Parameters

Operating Frequency: 860-960 MHz.
Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2.
Read Range: Up to 10 meters.
Operating Mode: Passive.

Chip Characteristics

Manufacturer: Alien H.
Chip Type: Alien H3.
Data Retention: 50 years.
User Memory: Up to 512 bits.
EPC Memory: 96-480 bits.
TID Memory: 64 bits.
Write Endurance: 100,000 cycles.
Read Sensitivity: -18 dBm.
Write Sensitivity: -13.5 dBm.

Physical Specifications

Material: Coated Paper + 3M Adhesive.
Size: 101.6×25.4 mm.
Antenna Size: 93×19 mm.

Operating Environment

Label Attachment:
- Temperature: 10°C to 40°C.
- Humidity: 20% to 80% RH.
After Label Attached:
- Temperature: -20°C to 50°C.
- Humidity: 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.

Handling Precautions

Do not bend.
Keep away from water and collision.
Inlays with black-dot marks are defective and should not be used.

Packaging

Packing Format: Packed in roll, vacuum-sealed in ESD bag.
Roll OD: Maximum 8.27 inches (210 mm).
Core ID: 3 inches (76.2 mm).
Packing Quantity: 2000 pieces per roll (2 kg per roll).

Additional Information

Product Datasheet: Alien H3 datasheet.
Applications: Ideal for asset tracking, inventory management, and logistics.
