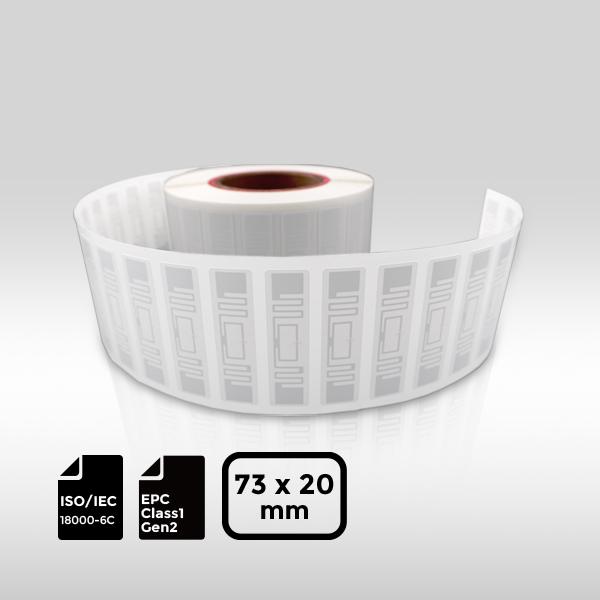

Alien H10 UHF RFID Label:
- Superior Sensitivity: Offers high read and write sensitivity with advanced backscatter capabilities.
- Exceptional Performance: Ensures reliability for high-volume applications.
- Ideal for Demanding Environments: Suitable for retail, automotive, supply chain, logistics, and Contact Customer Service industries requiring high-sensitivity RFID tracking.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: Alien H10.
- International Standard: ISO/IEC 18000-6C, EPC Class1 Gen2.
- User Memory: 32 bits.
- EPC Memory: 128 bits.
- Read Range: Up to 13 meters.
Specifications:
Physical Specifications:
- Material: Coated Paper.
- Size: 73×20 mm.
- Antenna Size: 70×14 mm.
Technical Parameters:
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO/IEC 18000-6C, EPC Class1 Gen2.
- Read Range: Up to 13 meters.
- Operating Mode: Passive.
Chip Characteristics:
- Chip Manufacturer: Alien H.
- Chip Type: Alien H10.
- Data Retention: 50 years.
- User Memory: 32 bits.
- EPC Memory: 128 bits.
- TID Memory: 48 bits.
- Write Endurance: 200,000 cycles.
- Read Sensitivity: -21.5 dBm.
- Write Sensitivity: -19 dBm.
- User Memory Permanently Locked: Supported.
- Detects and Flexes Single-Bit Errors and Flags Dual-Bit Errors: Supported.
Additional Information:
Operating Environment:
- Label Attachment: 10°C to 40°C, 20% to 80% RH.
- After Label Attachment: -20°C to 50°C, 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black-dot marks are defective and should not be used.
Packaging:
- Packing Format: Packed in rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 8.27 inches (210 mm).
- Core ID: 3 inches (76.2 mm).
- Packing Quantity: 2000 pcs/roll (1.015 kg/roll).
