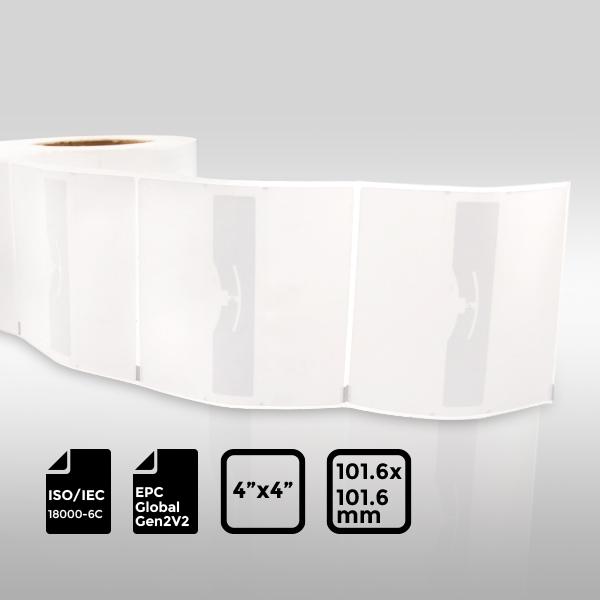

Alien H3 RFID Self-Adhesive Label:
- Advanced Chip: Embedded with the Alien H3 chip for high-precision reading.
- Standard Compliance: Meets EPC Class 1 Gen 2 and ISO/IEC 18000-6C standards.
- Stable Performance: Ensures reliable reading in various environments.
- Efficient Tracking: Provides efficient tracking and management solutions.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: Alien H3.
- International Standard: ISO/IEC 18000-6C, EPC Class 1 Gen 2.
- EPC Memory: 96-480 bits.
- User Memory: 512 bits.
- Read Range: Up to 10 meters.
Specifications:
Physical Specifications:
- Material: PP Synthetic Paper.
- Label Size: 101.6×101.6 mm.
- Inlay Size: 93×19 mm.
Technical Parameters:
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO/IEC 18000-6C, EPC Class 1 Gen 2.
- Antenna Etching Mode: Aluminum etching (9 µm).
- Operating Mode: Passive.
- IC ESD Voltage Immunity: 2000V (HBM).
- Read Range: Up to 10 meters.
Chip Characteristics:
- Chip Manufacturer: Alien.
- Chip Type: H3.
- Nonvolatile Memory: 800 bits.
- Unique TID: 64 bits (read & write).
- EPC Memory: 96-480 bits (read & write).
- User Memory: 512 bits (read & write).
- Reserved Memory:
- Access Password: 32 bits (read & write).
- Kill Password: 32 bits (read & write).
- Read Sensitivity: -18 dBm.
- Write Sensitivity: -13.5 dBm.
- Write Endurance: 100,000 cycles.
- Data Retention Time: 50 years.
Additional Information:
Operating Environment:
- Temperature: -40°C to 70°C.
- Humidity: 20% to 80% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Keep away from water, violent bumps, and squeezing.
- Inlays with black ink dots are defective and should not be used.
Packaging:
- Packing Format: In rolls, packed in ESD bags.
- Roll OD Size: Max. 195 mm.
- Core ID: 3 inches (76.20 ± 0.50 mm).
- Packing Quantity: 1000 ± 10 pcs/roll, 4 rolls/carton.
