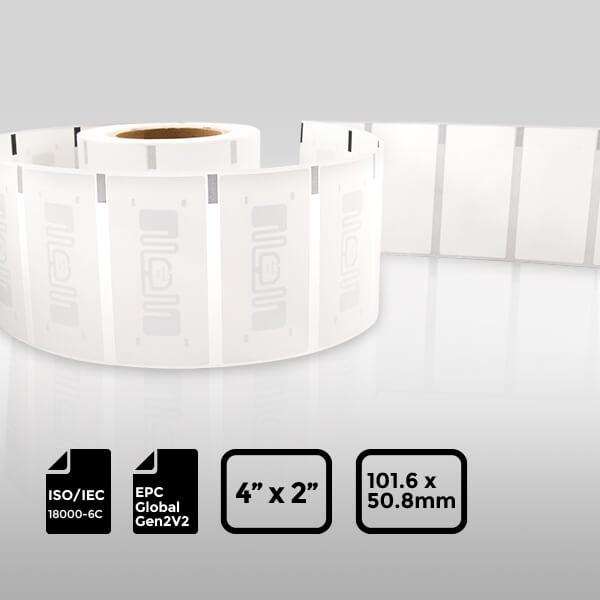

Introducing Our 4″×2″ UHF RFID Label:
- Advanced Chip: Features the highly capable 4D chip.
- Frequency Range: Operates in the UHF 860-960 MHz band.
- Performance: Offers unparalleled read and write performance.
- Compatibility: PP Synthetic Paper surface is fully compatible with thermal transfer label printers.
- Versatility: Suitable for logistics, healthcare, retail, and Contact Customer Service industries requiring precision, speed, and durability.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: 4D.
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2.
- EPC Memory: 128 bits.
- User Memory: 32 bits.
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: PP Synthetic Paper.
- Label Size: 101.6×50.8 mm.
- Inlay Size: 68×20 mm.
Technical Parameters:
- Operating Frequency: 860-960 MHz.
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2.
- Antenna Etching Mode: Aluminum etching (9 µm).
- Operating Mode: Passive.
- IC ESD Voltage Immunity: 2000V (HBM).
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: 4D.
- TID: 96 bits (read-only).
- EPC Memory: 128 bits (Read & Write).
- User Memory: 32 bits (Read & Write).
- Reserved Memory:
- Access Password: 64 bits (Read & Write).
- Kill Password: 64 bits (Read & Write).
- Read Sensitivity: -19.5 dBm.
- Write Sensitivity: -16.7 dBm.
- Write Endurance: 100,000 cycles.
- Data Retention Time: 50 years.
Additional Information:
Operating Environment:
- Temperature: -40°C to 70°C.
- Humidity: 20% to 90% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with black ink dots are defective and should not be used.
Packaging:
- Packing Format: In rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 185 mm.
- Core ID: 3 inches (76.2 mm ± 0.50 mm).
- Packing Quantity: 500 pcs/roll, single roll weight 0.79 kg.
