How to Design RFID Antennas for Your Business

RFID (Radio Frequency Identification) know-how has penetrated many industries, enormously enhancing work effectivity and accuracy by routinely figuring out goal objects and acquiring related knowledge in a contactless method. As one of many core elements of an RFID system, the design of an RFID antenna can’t be ignored for the efficiency of the whole system. This text explores in depth the impression of RFID antennas on the efficiency of RFID know-how and proposes a number of strategies for designing RFID antennas to optimize one of the best efficiency.

How do RFID antennas work?

Antennas in RFID methods are units that convert electrical power into radio frequency power and ship it to RFID tags to activate the tags or obtain power returned by the tags and decode info. The working precept of antennas will be briefly summarized into 4 steps:

Transmit mode: RFID readers ship radio frequency indicators to the environment via antennas. The transmission of those indicators usually happens utilizing radio waves, that are often within the low-frequency, high-frequency, or ultra-high-frequency vary.

Receiving and activating tags: When an RFID tag enters the reader’s vary and receives the radio frequency sign, the antenna within the tag receives power and prompts it.

Reverse transmission: Upon activation, the RFID tag employs its antenna to encode the knowledge saved inside and transmit it again to the reader.

Decoding and processing: The reader receives the sign despatched again from the tag and decodes it into recognizable knowledge.

Why have to design RFID antennas?

Cheap design of RFID antennas in keeping with precise wants can enormously assist the appliance of RFID know-how, akin to:

Increase the protection of RFID tags

The vary of RFID tags relies upon largely on the antenna design. Properly-designed antennas can considerably develop the protection space, enabling efficient communication at an extended distance.

Enhance studying accuracy

The accuracy of studying RFID tags is essential for varied functions akin to stock administration and entry management. Correct antenna design can guarantee correct and dependable tag readings, cut back errors, and enhance operational effectivity.

Adapt to completely different environments

RFID methods function in quite a lot of environments, together with warehouses, retail shops and outside places. Antenna design wants to think about these completely different circumstances to take care of constant efficiency.

Scale back prices

Environment friendly antenna design can save prices by optimizing materials utilization, lowering power consumption and lowering upkeep necessities.

Enhance the efficiency of RFID methods

By enhancing sign power and readability, well-designed antennas can enhance the general efficiency of RFID methods, leading to extra highly effective and dependable operation.

Increase the promotional impression of the corporate’s model picture

By cleverly designing the RFID antenna into an organization’s distinctive model brand or consultant aspect, it can’t solely enhance its recognition in day by day functions but in addition invisibly reveal the corporate’s professionalism and protracted pursuit of revolutionary know-how in each use. It enhances the visible impression of the corporate’s model and enhances the corporate’s model picture and market affect.

Find out how to design an antenna?

Concerning the right way to set up and design antennas in your small business, it is strongly recommended to think about the next components:

1. Antenna sort

Presently, there are low-frequency, high-frequency, and ultra-high-frequency antennas. The upper the frequency, the longer the studying distance and the sooner the studying pace.

2. Antenna construction

The antenna construction features a coil antenna, antenna sheet, 2.5D antenna, and 3D antenna. Coil antennas carry out nicely in low-frequency and high-frequency conditions. Antenna sheets carry out higher in high-frequency and ultra-high-frequency conditions. 2.5D antennas and 3D antennas are often utilized in units akin to cellphones and tablets.

3. Antenna dimension

The antenna size mustn’t exceed half of the wavelength to keep away from lowering the radiation effectivity. The antenna width must be near the size and keep an acceptable ratio.

4. Antenna matching

Antenna matching is essential to the efficiency of the RFID system. Attaining secure communication depends on guaranteeing impedance matching between the antenna and the RFID chip. Good impedance matching can reduce sign reflection and loss, and enhance the studying distance and accuracy of the RFID system.

5. Polarization and directivity

Antenna polarization modes embrace linear polarization and round polarization, and the selection relies on the appliance state of affairs. Linear polarization antennas carry out nicely in eventualities with much less environmental interference and glued relative positions of tags and readers. Round polarization antennas carry out higher in eventualities with complicated environments and unfixed relative positions of tags and readers.

Antenna directivity additionally impacts working distance and protection. Antenna directivity refers back to the functionality of an antenna to transmit or obtain radio waves in particular instructions inside area. When an antenna has clear directivity, it sends or receives indicators extra successfully in a selected course, however comparatively weakly in different instructions.

6. Environmental adaptability

When designing RFID antennas for software eventualities, it’s mandatory to think about the impression of environmental components akin to steel, liquid, and so forth. on antenna efficiency. Select rfid antennas which might be designed with shielding supplies or applied sciences to cut back the impression of steel and different interference sources on RFID antennas. On the identical time, the antenna’s directivity must be adjusted in keeping with the appliance state of affairs to keep away from pointless sign reflection and interference.

7. Price-effectiveness

On the premise of assembly efficiency necessities, minimizing prices is a crucial consideration for putting in and designing antennas to your software eventualities.

Conclusion

The design of RFID antennas is essential in RFID methods, which instantly impacts the protection, studying accuracy, and general efficiency of the system. By choosing the suitable antenna sort, construction, and dimension, guaranteeing the impedance matching between the antenna and the RFID chip, and contemplating environmental adaptability and cost-effectiveness, the impact of the RFID system will be considerably improved. In particular software eventualities, the antenna design must be custom-made and optimized in keeping with precise wants to attain optimum efficiency.

As well as, by combining the antenna design with the corporate’s model picture, the model’s visible impression and market affect will also be enhanced. Cheap design and structure of RFID antennas can’t solely enhance enterprise effectivity but in addition carry long-term financial advantages and model worth to the corporate.

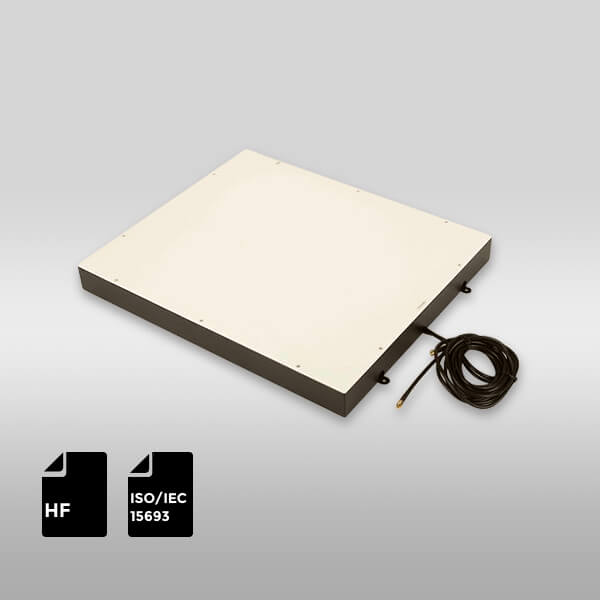

Good Tray HF RFID Antenna ISO 15693

The Good Tray RFID antenna is a high-performance antenna designed for fast checkout in eating places. It really works together with the RFID readers to satisfy the checkout wants of quick meals eating places.

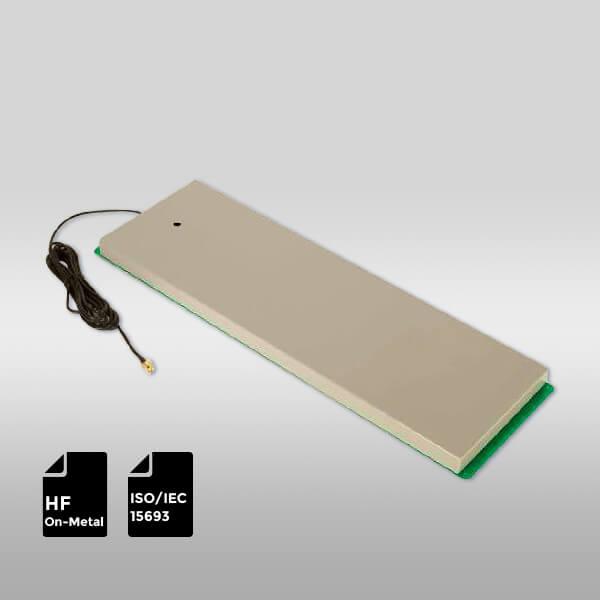

HF On-Steel RFID Antenna ISO 15693

An digital on-metal RFID antenna designed particularly for desktop functions. This collection of merchandise successfully controls the induction space on the entrance of the antenna, stopping misreading of digital tags exterior the antenna. The antenna adopts an anti-metal design, which can be utilized on a metallic desk with out affecting its efficiency.The product is extensively utilized in fields akin to e-book/doc administration, jewellery stock monitoring, chips anti-counterfeiting and change, and retailer counter settlement.

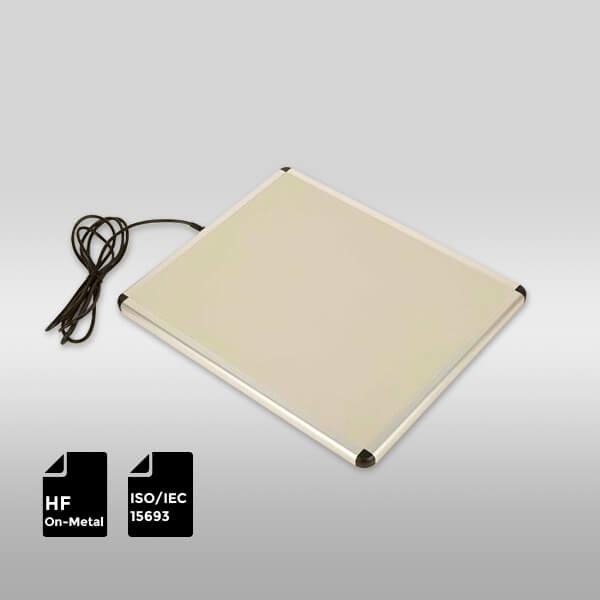

HF Embedded On-Steel RFID Antenna ISO 15693

The embedded on-metal RFID antenna is specifically designed  to be used in steel environments on manufacturing traces. This product options an on-metal design, permitting it to be put in and utilized in environments the place 5 sides are steel, with out affecting its efficiency. The product is extensively utilized in fields akin to manufacturing automation, AGV transportation automobiles, and logistics sorting.
