How to choose suitable NFC chips for your business?

The primary consideration is deciding which reader could be used to learn or write the Tags. In actuality, if we can not learn or encode a Tag, that is utterly pointless. It’s a nice concept to double-check that the NFC Chip and the NFC Reader are compliant.

Table of Contents

Smartphone compatibility

You need to use NTAG® or ICODE® Chips if you wish to use a cell phone or associated software.

ISO15693 or ISO14443

When you use a reader then, be certain that it meets the mandatory requirements. The ISO14443 commonplace governs NTAG® and MIFARE® chips, whereas ISO15693 governs ICODE® chips.

Reminiscence Capability

An extra crucial issue is the consumer reminiscence, which might be the Tag’s useable reminiscence. The quantity of reminiscence required is proportional to the quantity of knowledge that shall be used. Tags with much less reminiscence are usually more cost effective.

The NTAG210 or NTAG213 Chip is enough to configure the Tag with a URL or primary textual content.

For an digital enterprise card (V-Card), a Tag with some extra reminiscence, just like the NTAG216, is preferable.

The encryption degree

With out encryption, the chip’s contents turn into accessible to everybody who searches and scans the Tag with their telephone or NFC reader. To stop this, choose a chip that promotes cryptography.

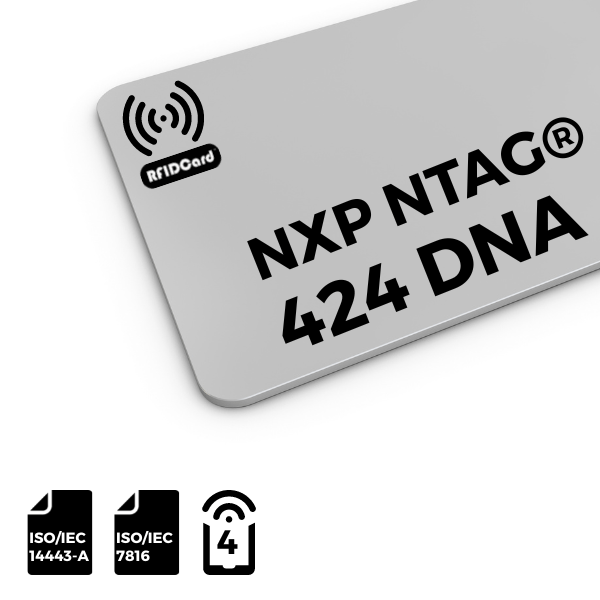

Probably the most generally used are NTAG413 DNA / NTAG424 DNA and MIFARE® DESFire® & MIFARE Plus®.

Preservation of knowledge

These tags are usually not eternal, however the chip makers promise the information’s preservation for prolonged intervals. For NTAG21x, MIFARE Traditional®, Plus®, Ultralight®, and MIFARE® DESFire® EV1 variations, this time is ten years. Whereas MIFARE® DESFire® EV2 fashions have a lifespan of as much as 25 years, ICODE® fashions have a lifespan of as much as 50 years.

Taking a look at NTAG fashions extra carefully:

When you require NFC Tags which might be usable with all NFC-enabled cell gadgets, it’s essential to choose the NTAG chip. There are numerous forms of NTAG chips.

The NTAG203 is a well-liked chip with a 137 bytes capability and is on the market in varied sizes, varieties, measurements, and bracelets. Basically, it’s wonderful for any use, regardless that it has been outmoded by the newest era chips NTAG212 and NTAG213.

The NTAG212 is extra refined than the NTAG203 by way of studying vary and pace. It has 128 bytes of reminiscence, which is barely much less. It has the numerous good thing about being more cost effective.

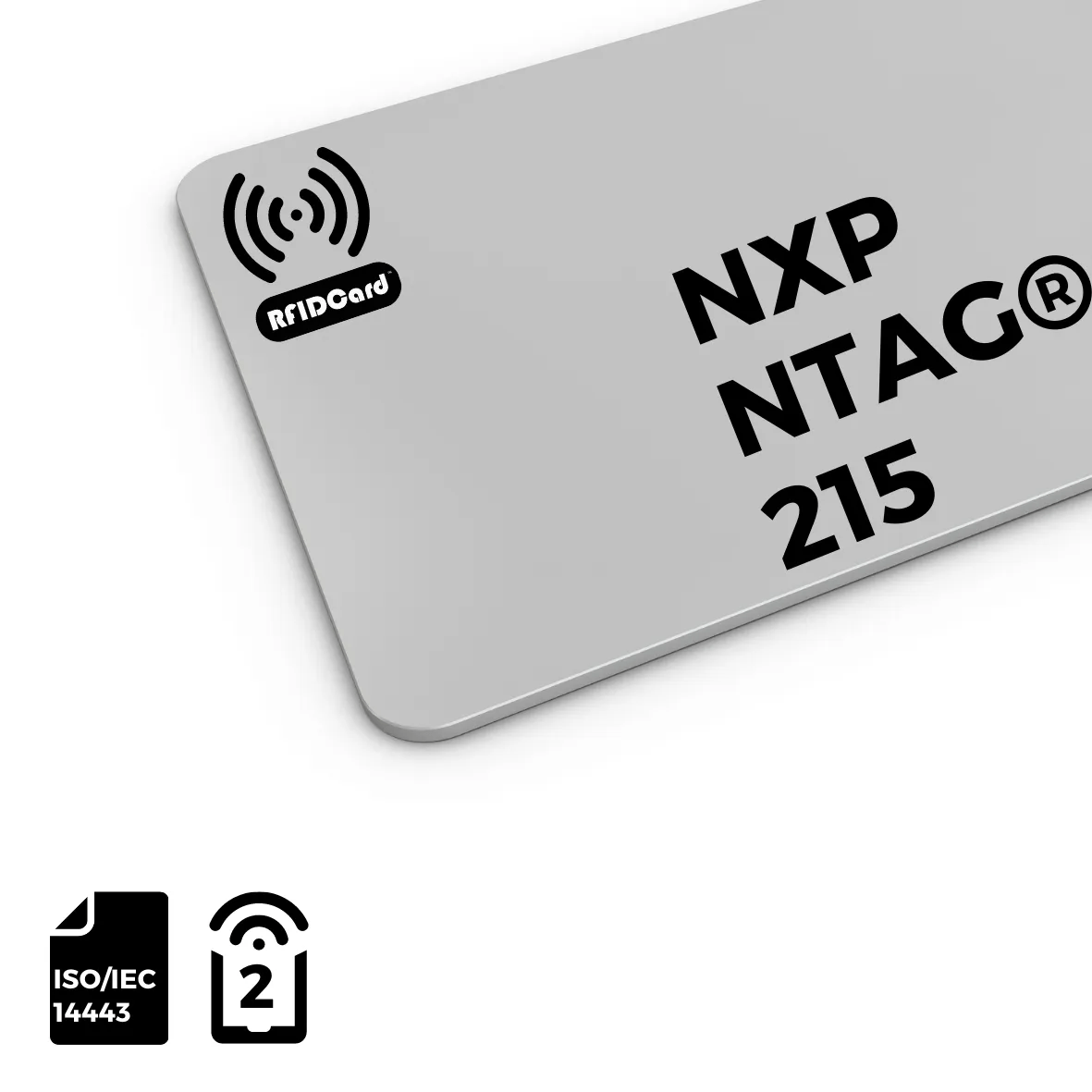

Because it has 504 bytes of usable reminiscence, NTAG215 is within the middle of NTAG213 and NTAG216 and will be encrypted with V-Playing cards or extra information. It has some extra performance, similar to password safety, like the remainder of the NTAG21x collection. It’s barely cheaper than the NTAG216, however it’s a nice NFC Chip.

The NTAG216 has a better capability than others owing to its 888-byte usable reminiscence. This function makes it a superb chip for enterprise playing cards with intensive information. They’re extraordinarily quick, however they’re extra expensive.
